No. Description No. Description
1 Lifting motor 3 Tray rear shaft
2 Coupling 4 Tray bottom plate

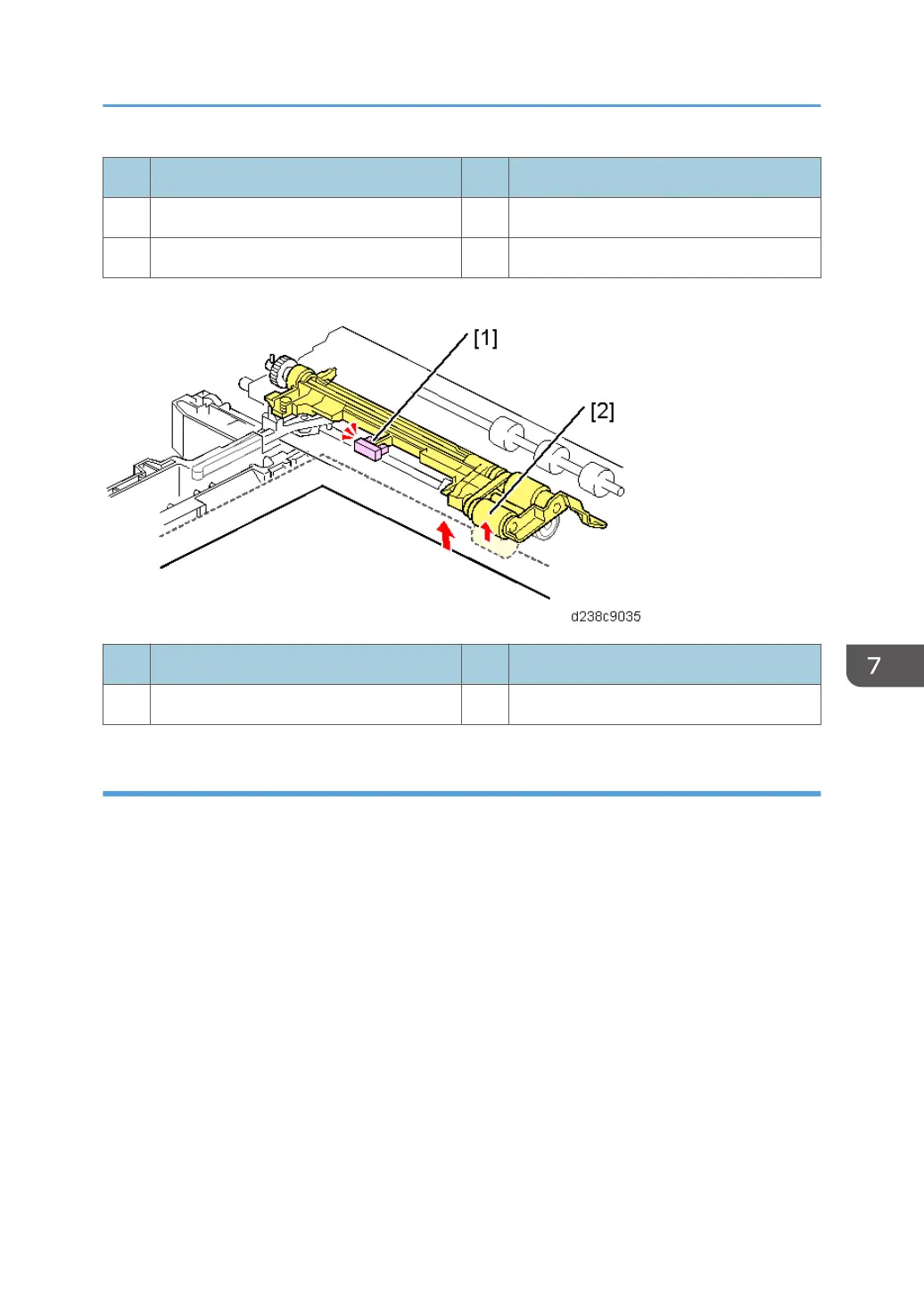

No. Description No. Description
1 Upper limit sensor 2 Pick-up roller
Paper feed mechanism
The paper feed unit employs an RF system.
In a conventional FRR system, transport of 2 sheets at a time is prevented by reverse rotation of the
separating roller, but in the RF system, paper separation is assisted by the resistance of a separating
roller with a torque limiter (reverse drive is not performed).
When the paper feed tray is set in the machine, an arm is pressed, the Friction roller comes in contact
with the Feed roller, and the Pick-up roller contacts the top of the paper (to prevent paper remaining,
when the paper feed tray is withdrawn, the arm returns and contact with the rollers is released).
The machine enters paper supply standby mode when the tray bottom plate moves up. When the Paper
feed motor is switched ON, the rollers rotate and paper is supplied.
The roller holder functions as a paper guide and roller Clip ring. The roller holder prevents the paper
from winding up.
Paper Feed / Transport Section
1265
