Troubleshooting for Finishing Options
Finisher Registration Adjustment
A side-to-side registration error can be produced when the paper is being fed from the mainframe to the
finisher.
For Booklet Finisher SR3240 (D3BB) / Finisher SR3230 (D3BA)

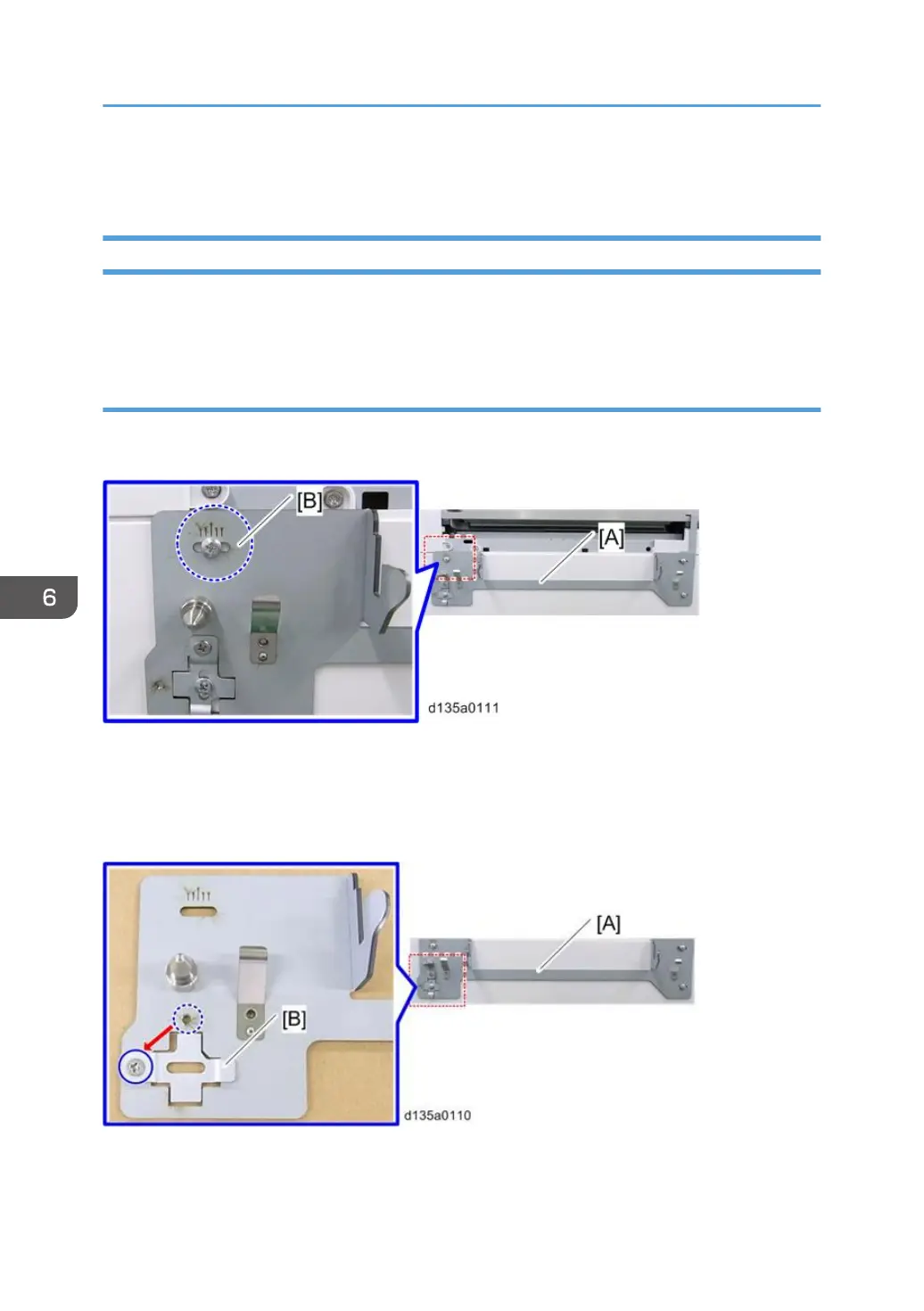

The docking bracket for SR3240/ SR3230 [A] (and its screw [B]) can adjust the side-to-side
registration.
To adjust the side-to-side registration:
Change the position of the standard bracket [B] by rotating it 90 degrees as shown by the arrow. This
makes the docking bracket [A] easier to slide horizontally.
Then reattach the docking bracket [A] to the mainframe.
