Ricoh MP C3004 - Paper Dust Collection Unit; Pick-Up Roller, Paper Feed Roller, Separation Roller, Torque Limiter

To Next Page

To Previous Page

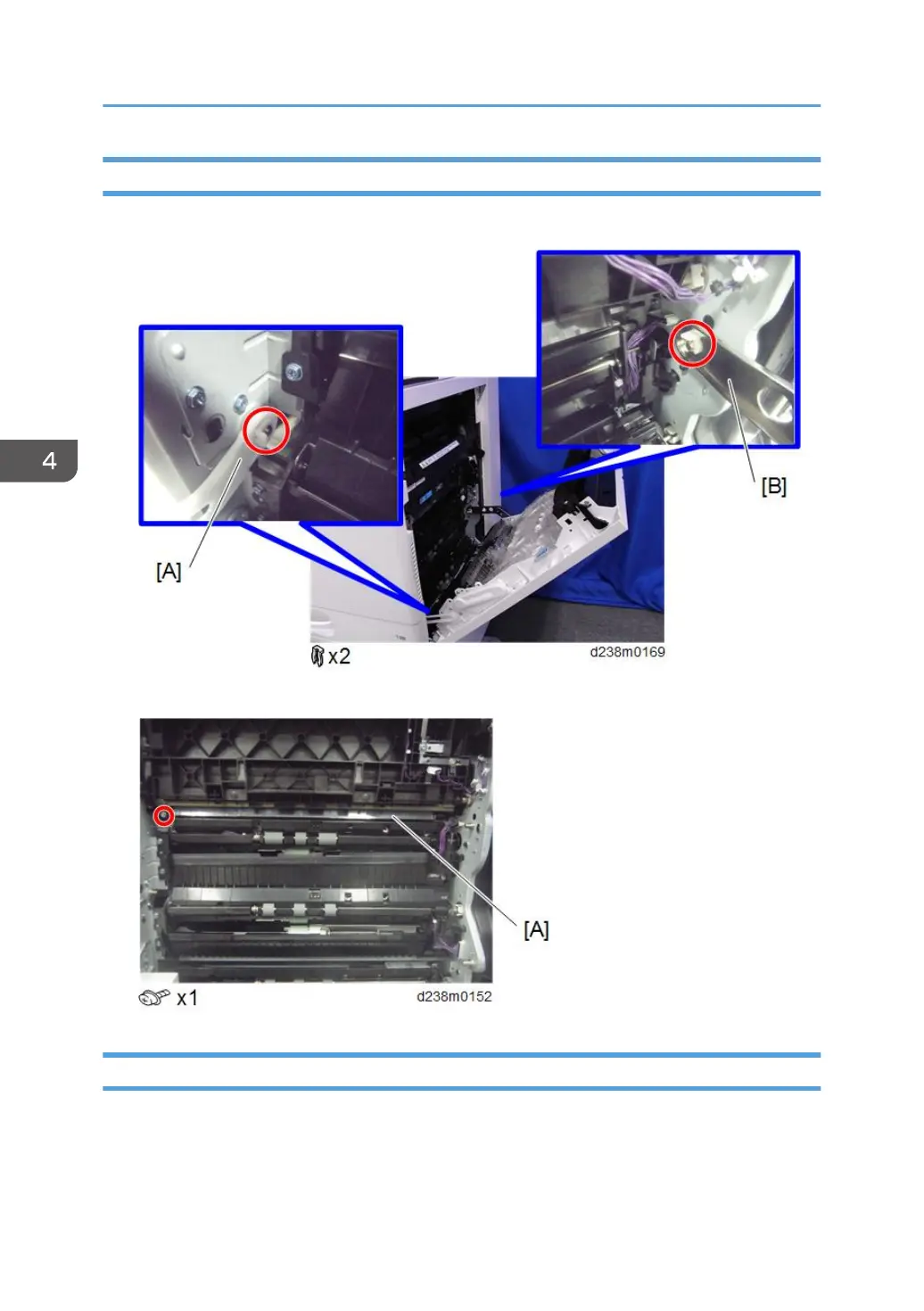

Paper Dust Collection Unit

1. Open the right door wide (Arms [A] [B]).

2. Paper dust collection unit [A]

Pick-up Roller, Paper Feed Roller, Separation Roller, Torque Limiter

1. Paper feed unit (page 652)

4. Replacement and Adjustment

656
