Ricoh MP C3004 - Paper Transfer; Paper Exit

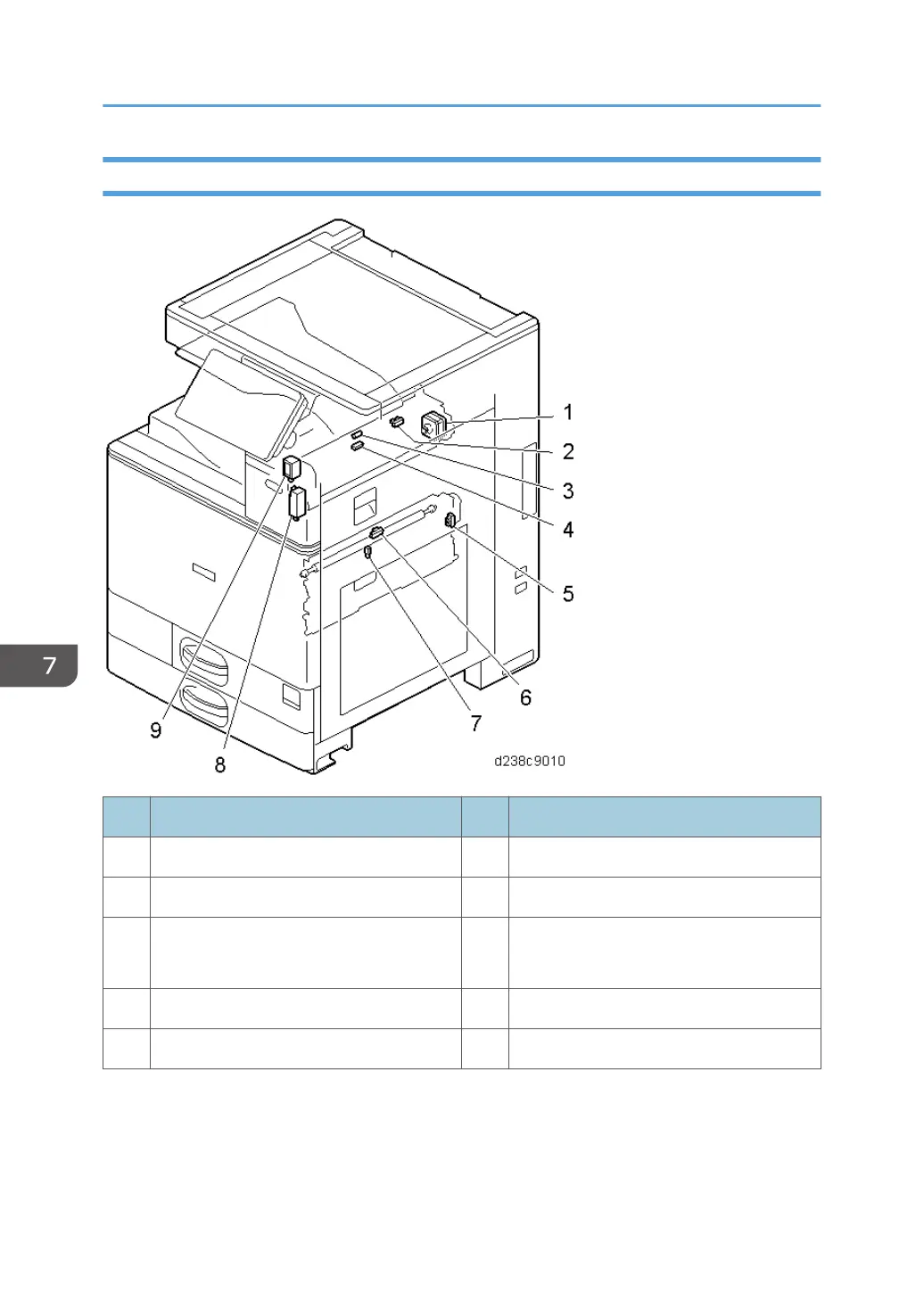

Paper Transfer / Paper Exit
No. Description No. Description
1 Reverse motor 6 Fusing entrance sensor
2 Paper exit full sensor 7 Fusing jam sensor
3 Reverse sensor 8
Fusing exit drive solenoid
(installed on the main machine)
4 Paper exit sensor 9 Paper exit solenoid
5 PTR open/close sensor
