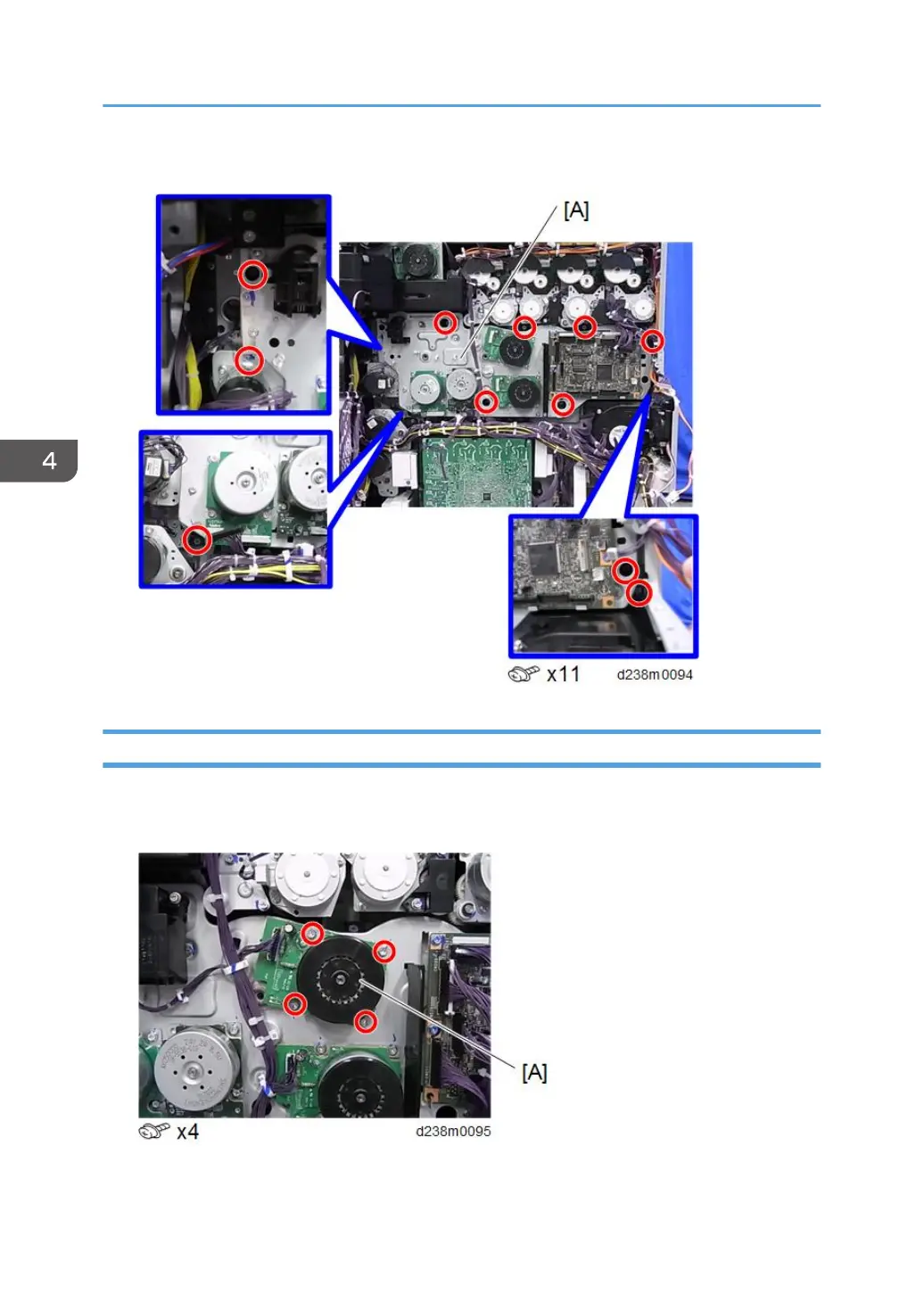

5. Imaging drive unit [A]

PCU Motor: CMY

1. Controller box (page 605)

2. PCU Motor: CMY [A]

4. Replacement and Adjustment

608
