Ricoh MP C3004 - Replacement

Item SP
Development unit
Black: SP3-701-003
Yellow: SP3-701- 072
Cyan: SP3-701-026
Magenta: SP3-701-049
PCU
Black: SP3-701-002
Yellow: SP3-701-071
Cyan: SP3-701-025
Magenta: SP3-701-048
Replacement

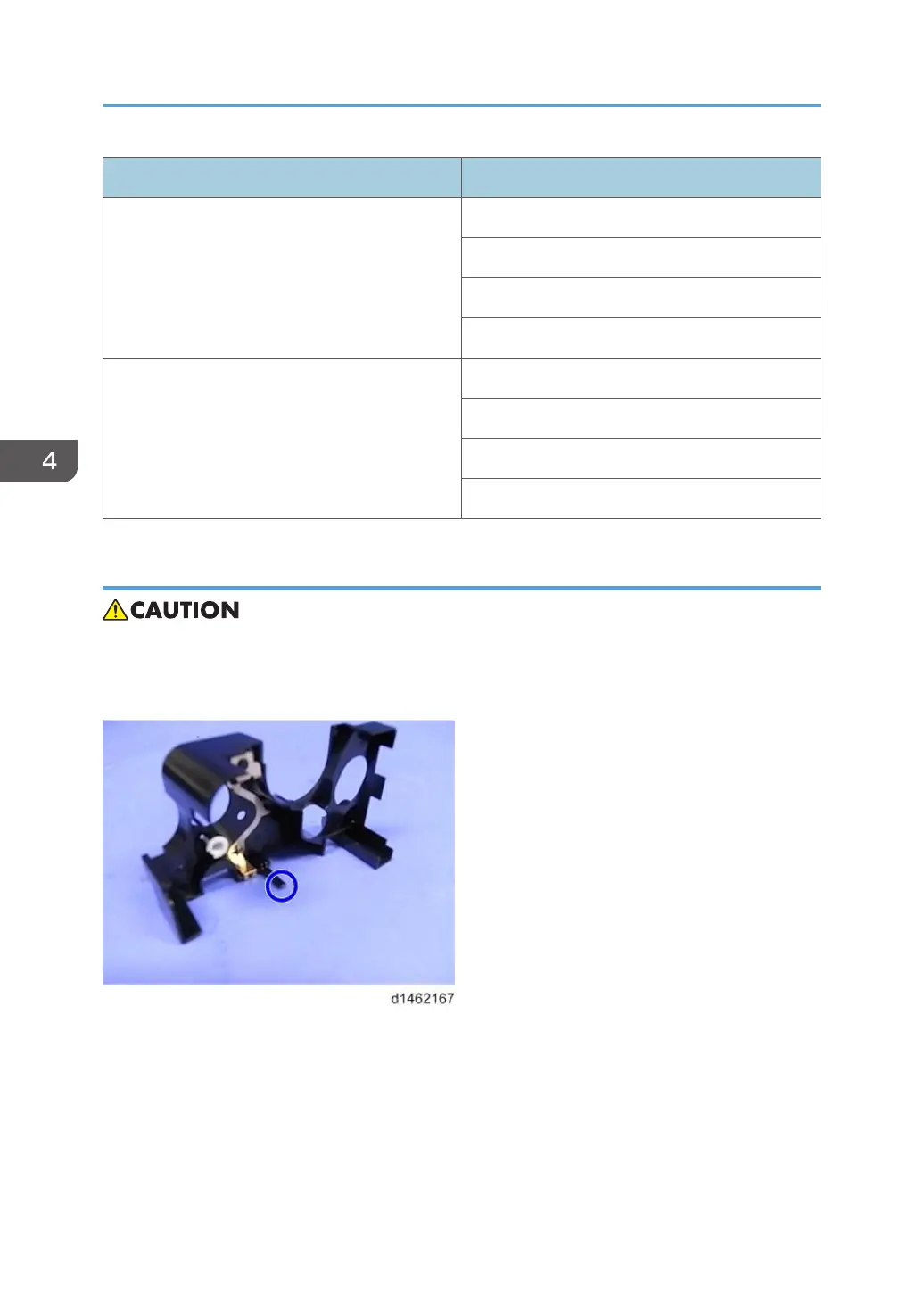

• Remove carefully so as not to damage the part of the rear end block shown by the blue circle
(removed in Step 3). If the parts are bent or deformed, electrical contact may become poor, and
this may cause poor image quality.
1. PCDU (page 553)
4. Replacement and Adjustment
558
