Ricoh MP C3004 - Reverse Motor

To Next Page

To Previous Page

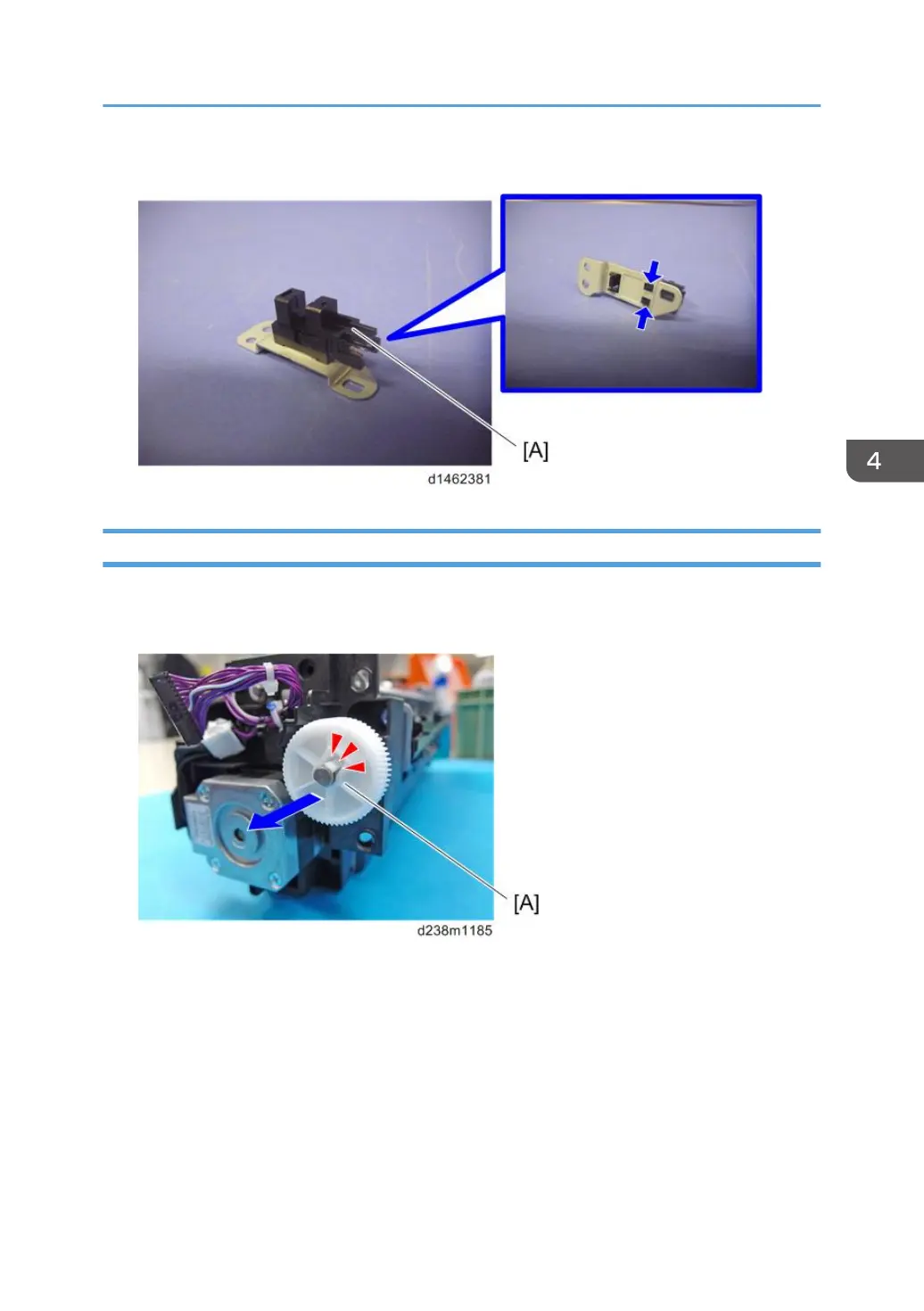

3. Paper exit full sensor [A]

Reverse Motor

1. Paper exit unit (page 644)

2. Gear [A] (Tab x1)

Paper Exit

649
