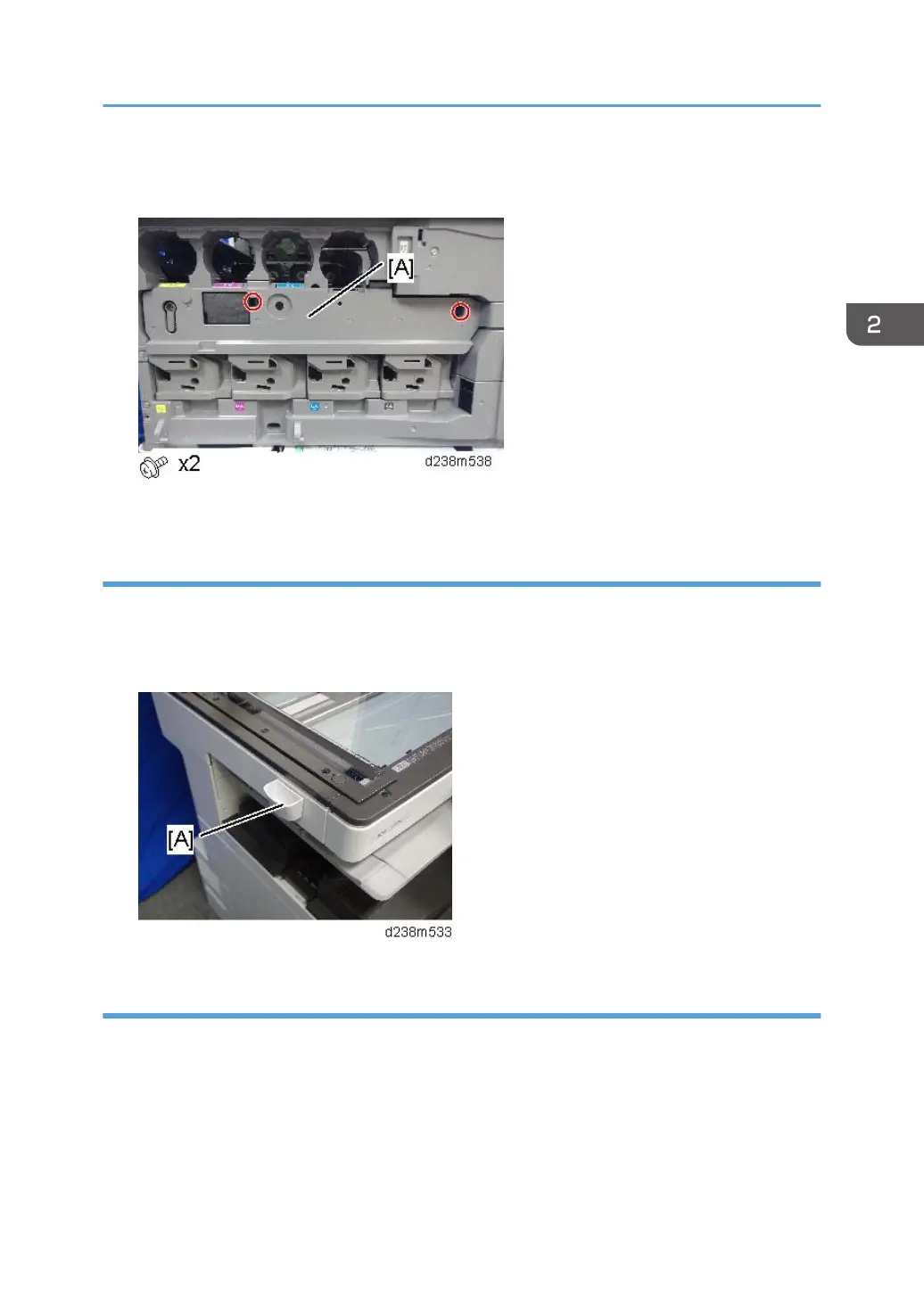

6. Attach the image transfer front cover [A] with the two screws (M3×8; provided with the
accessories).
7. Close the front cover.
Attaching the Optical Cloth Pocket
1. Clean the adhesive surface of the optical cloth pocket with an alcohol-soaked cloth.
2. Attach the optical cloth pocket [A] to the left side of the scanner and put the optical cloth
into the pocket.
Attaching the Paper Exit Tray Parts
1. Attach the part [A] to the paper exit tray.
First, insert and attach the front pin (inside the blue circle).
