Ricoh MP C3004 - Scanner Right Cover; Scanner Left Cover

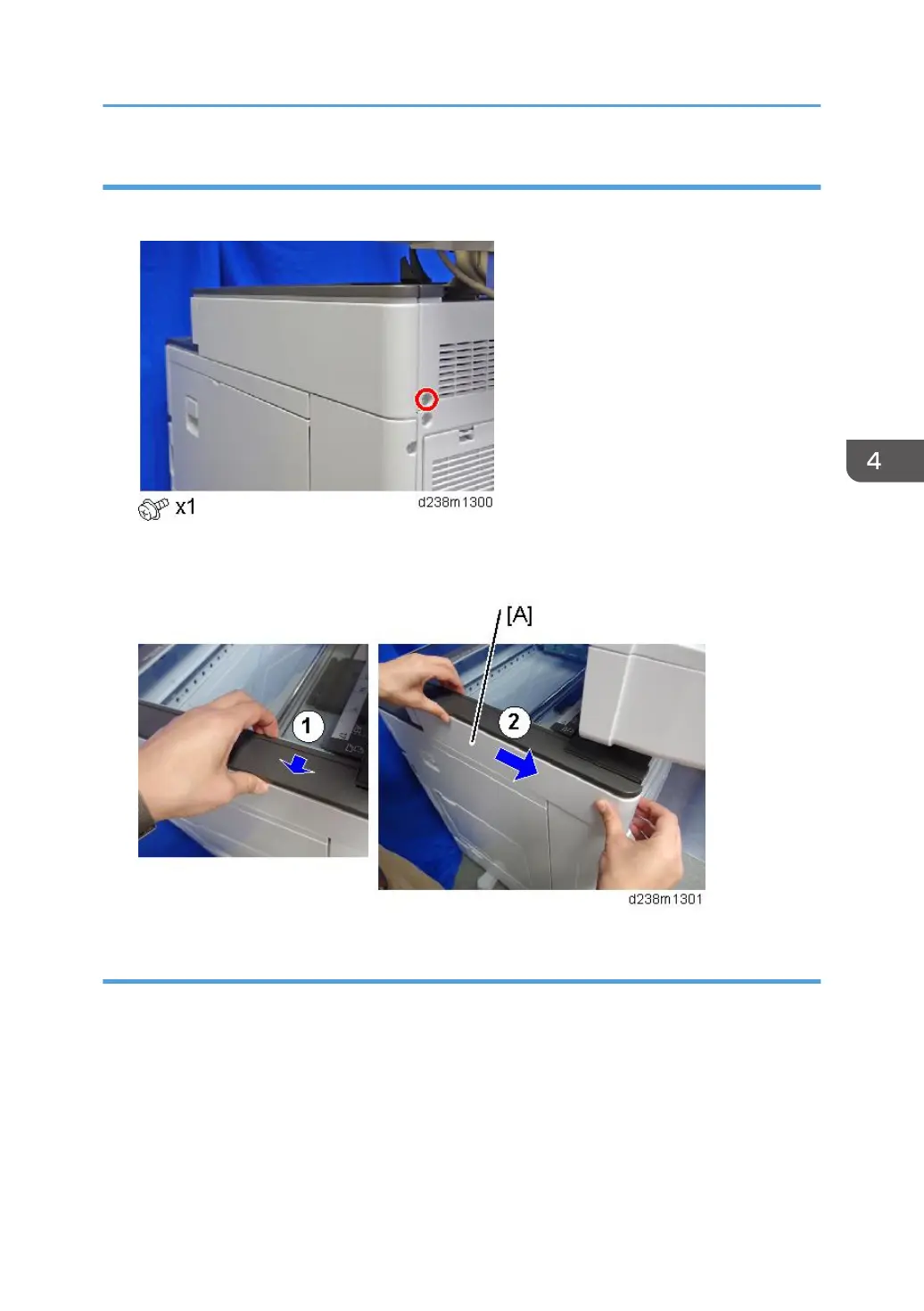

Scanner Right Cover
1. Remove the screw.
2. Scanner right cover [A]
Remove the hook at the top, and then slide the cover towards the rear.
Scanner Left Cover
1. Left rear cover (page 495)
2. Scanner front cover (page 520)
Scanner Unit
521
