Ricoh MP C3004 - Original Size Sensor; Scanner HP Sensor

To Next Page

To Previous Page

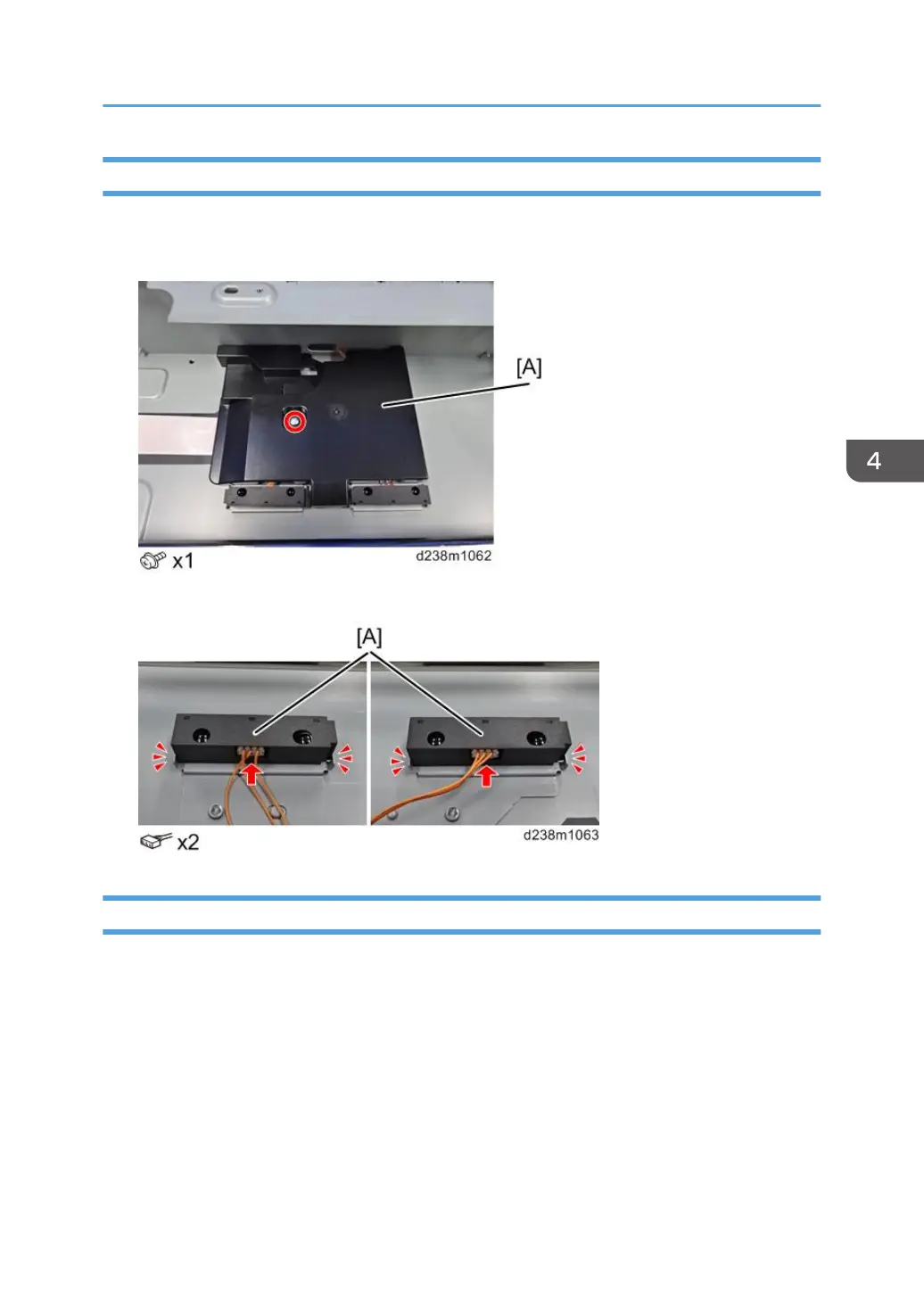

Original Size Sensor

1. Exposure glass (page 522)

2. Original size sensor harness cover [A]

3. Original size sensors [A] (Hook x 4)

Scanner HP Sensor

1. Exposure glass (page 522)

Scanner Unit
