Ricoh MP C3004 - Inner Upper Cover; Inner Lower Cover

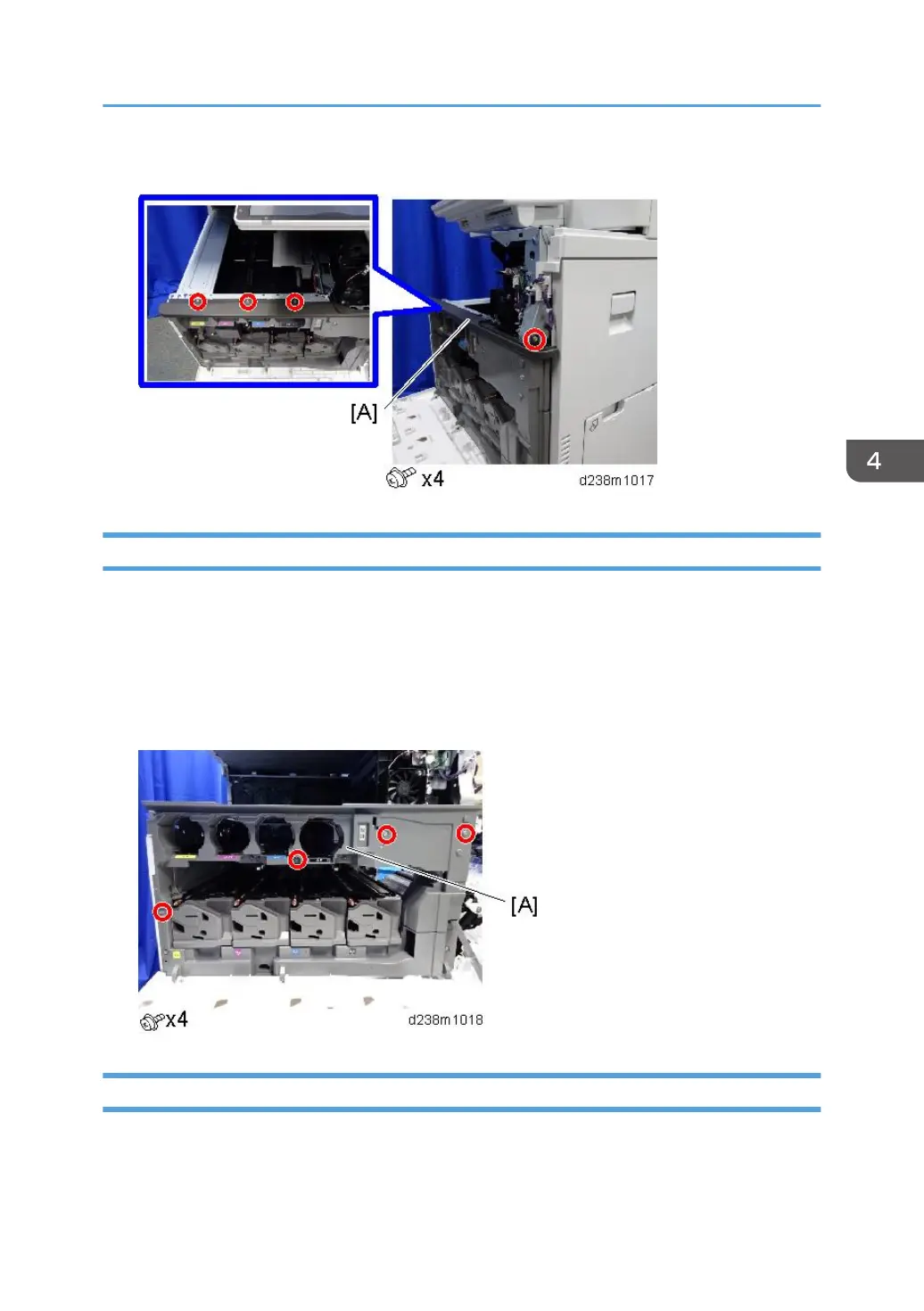

3. Paper exit front cover [A]
Inner Upper Cover
1. Open the front door, and remove the belt. (page 493)
2. Open the right door.
3. Paper exit front cover (page 508)
4. Image transfer unit (page 566)
5. Inner upper cover [A]
Inner Lower Cover
1. Front cover (page 493)
2. Inner upper cover (page 509)
