Ricoh MP C3004 - Thermostat Unit

To Next Page

To Previous Page

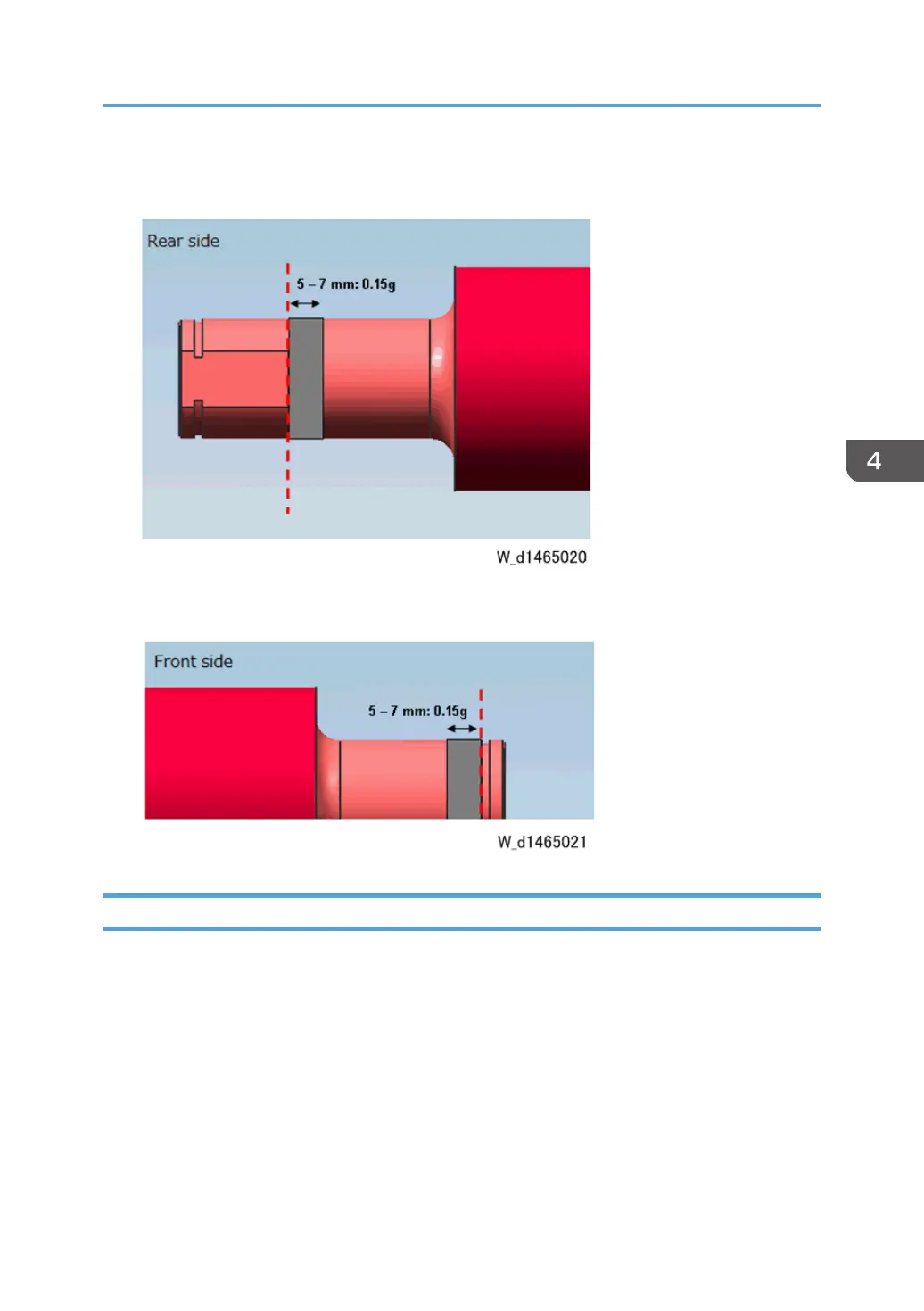

3. Apply the grease (FLUOTRIBO MG GREASE) to the rear shaft of the pressure roller at

5-7mm from the cut edge.

4. Apply the grease (FLUOTRIBO MG GREASE) to the front shaft of the pressure roller at

5-7mm from the C-ring notch.

Thermostat Unit

1. Left frame (page 630)

Fusing Unit

637
