• Do not move the pressure roller to another fusing unit.

1. Heating sleeve belt unit (page 630)

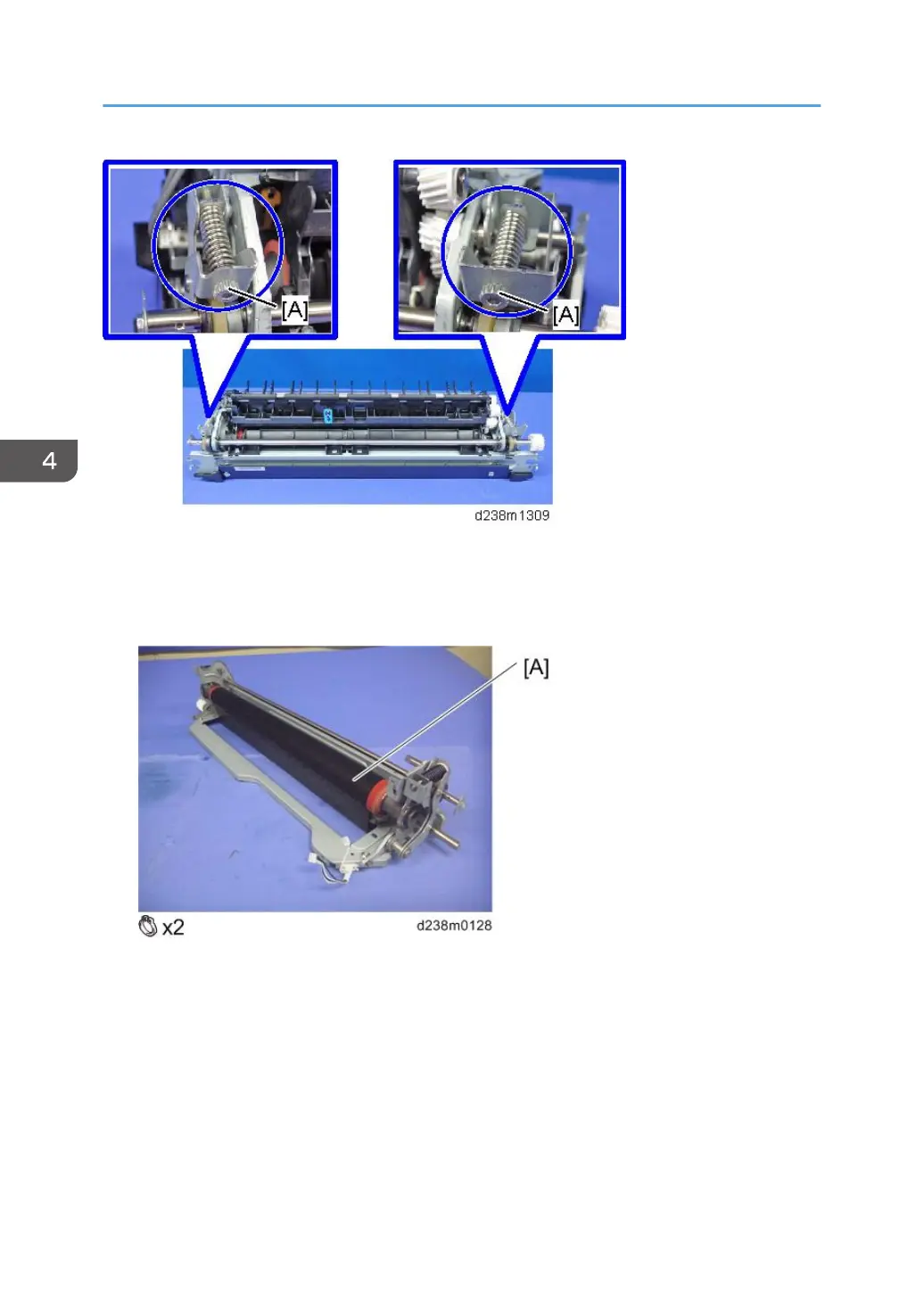

2. Pressure roller [A]

4. Replacement and Adjustment

636
