Ricoh MP C3004 - Paper Exit; Pressure Release Motor; Duplex Entrance Motor

To Next Page

To Previous Page

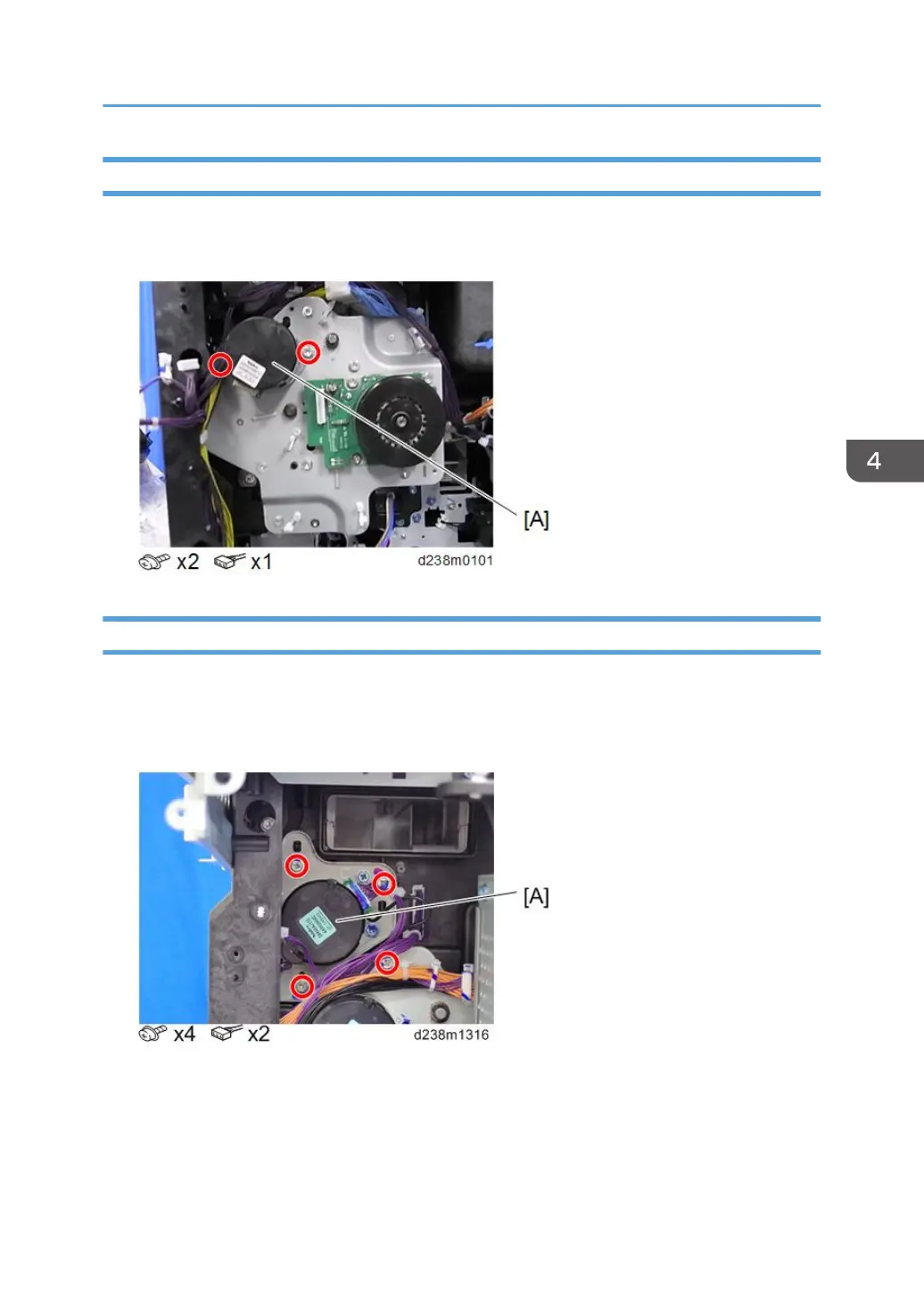

Paper Exit / Pressure Release Motor

1. Fusing exhaust fan (page 713)

2. Paper exit / Pressure release motor [A]

Duplex Entrance Motor

1. Paper exit unit (page 644)

2. Fusing exhaust fan (page 713)

3. Duplex entrance motor unit [A]

Drive Unit

613
