Ricoh MP C3004 - Duplex Unit

To Next Page

To Previous Page

Duplex Unit

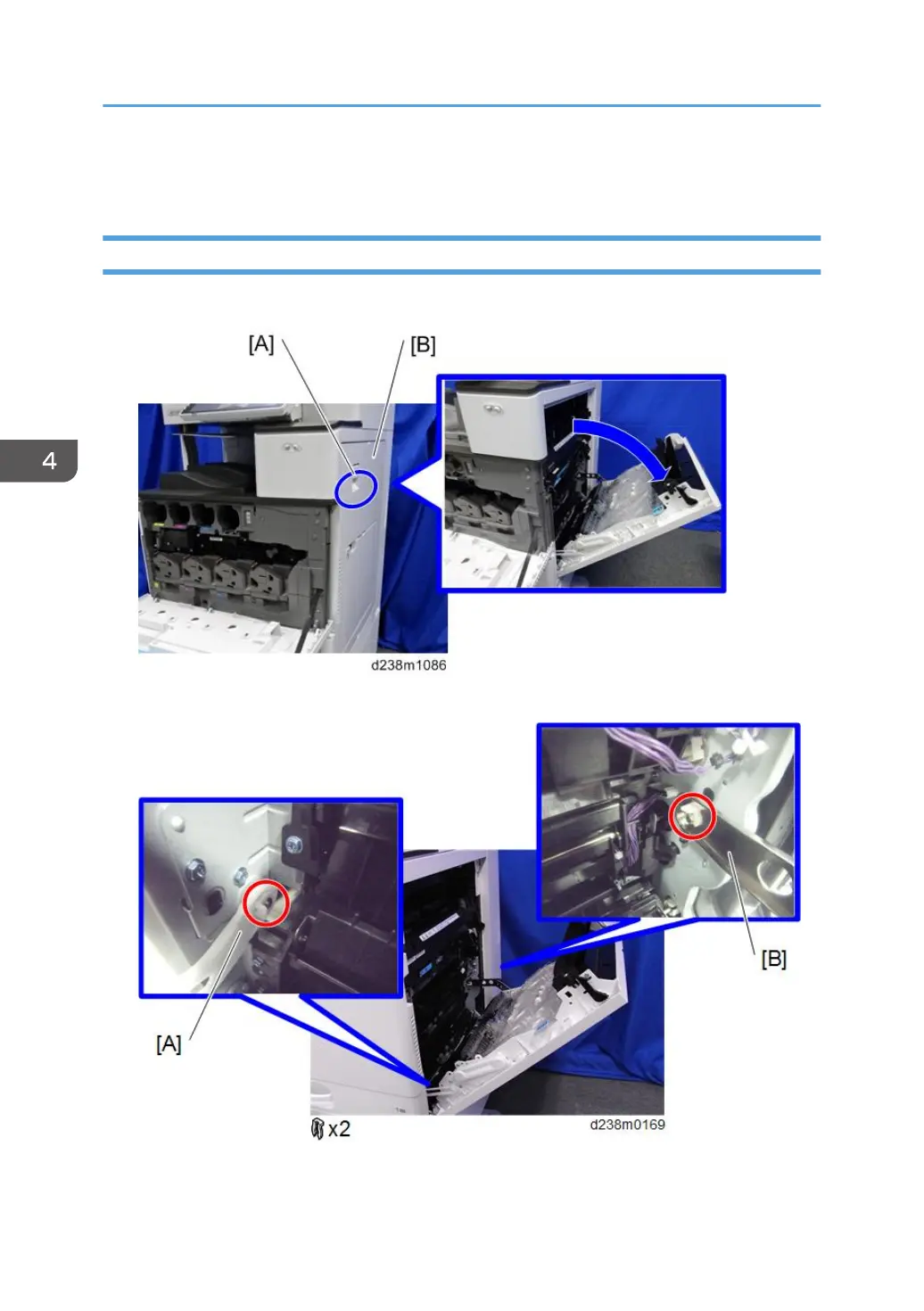

1. Unlock the lever [A], and then open the right door [B].

2. Arms [A] [B]

3. Right rear cover (page 500)

4. Replacement and Adjustment

676
