Ricoh MP C3004 - Delivery Location Change-Over; Paper Exit Unit

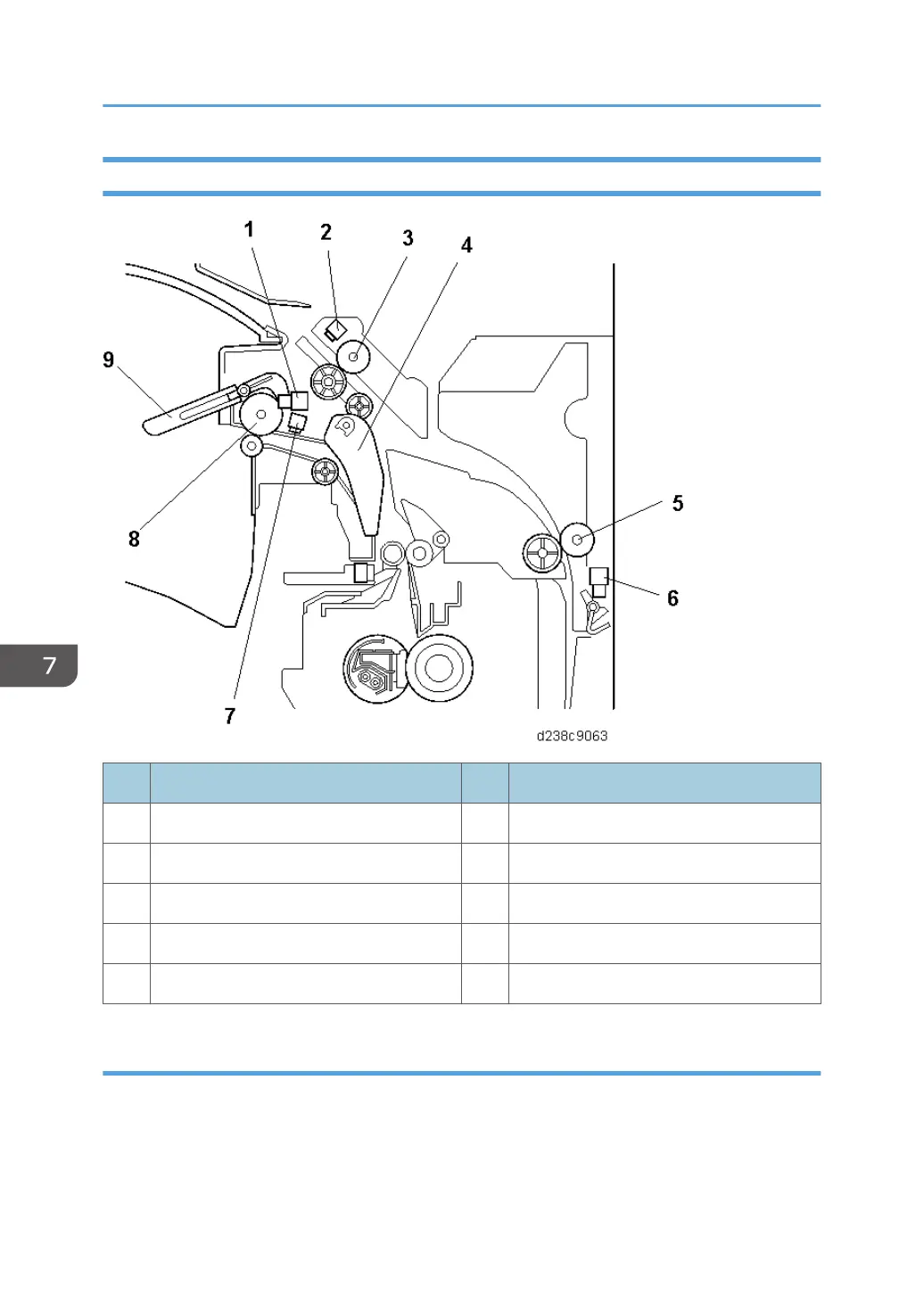

Paper Exit Unit
No. Description No. Description
1 Paper Exit Full Sensor 6 Duplex Entrance Sensor
2 Reverse Sensor 7 Paper Exit Sensor
3 Reverse Roller 8 Paper Exit Roller
4 Paper eject junction gate 9 Feeler
5 Duplex Entrance Roller 1
Delivery location change-over
The paper transported from the fusing unit is changed over by the junction gate in the "Machine paper
exit/bridge unit" direction or the "duplex unit/1-bin tray" direction.
Machine paper exit/bridge unit direction
1. The registration sensor switches ON.
