2. The paper exit/pressure release motor switches ON (CCW).
3. When the rear edge of the paper leaves the paper exit roller, the paper exit/pressure release
motor switches OFF.

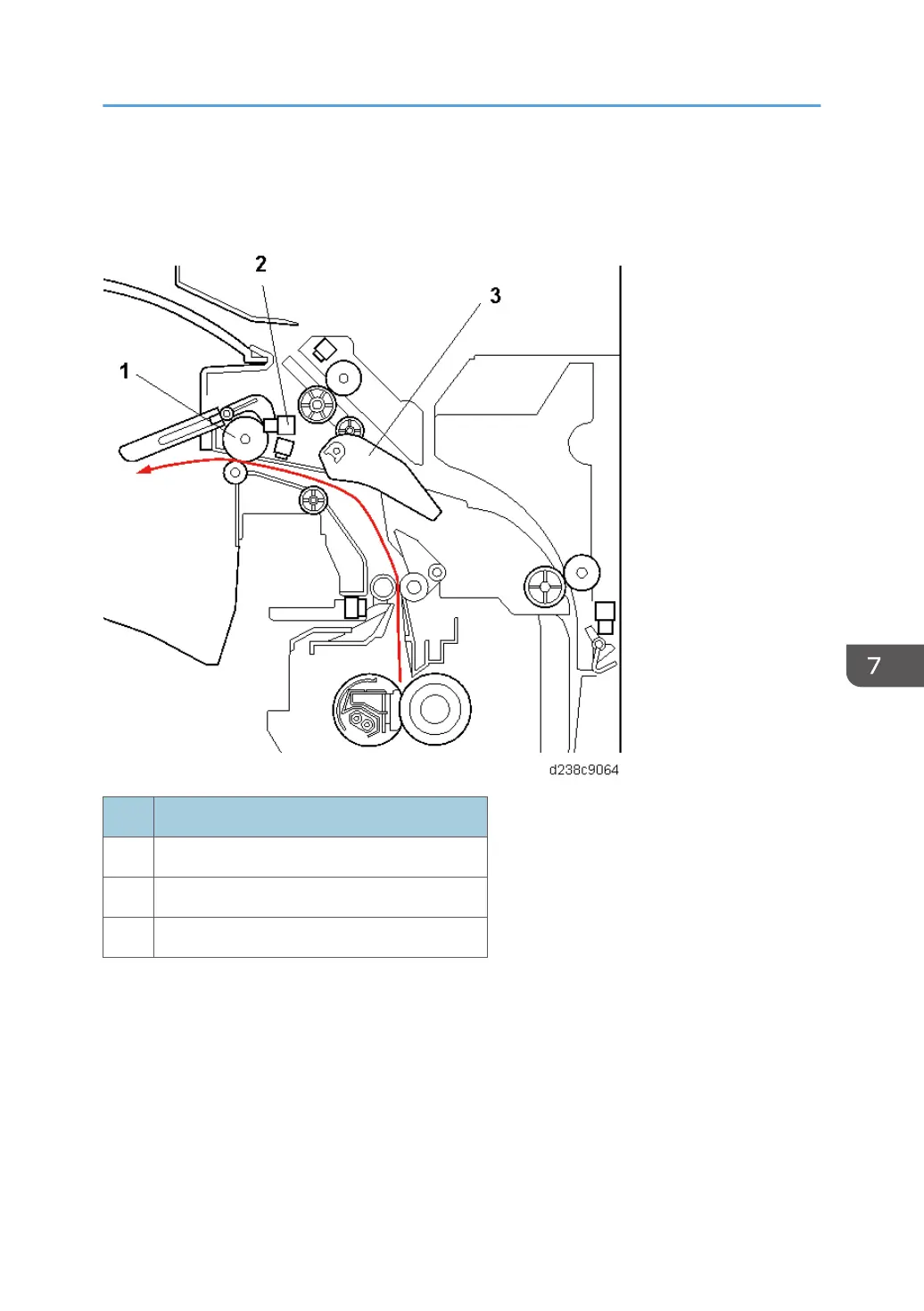

No. Description
1 Paper exit roller
2 Paper exit sensor
3 Paper exit junction gate
Duplex unit/1-bin tray direction
1. Registration sensor switches ON.
2. The reverse motor switches ON (CCW).
3. Before the leading edge of the paper reaches the paper exit junction gate, the junction gate
moves to the duplex unit/1-bin tray direction.
* If the gate is in the duplex unit/1-bin tray direction, the gate is not changed over.
4. Before reversing the paper, the junction gate solenoid switches OFF.
Paper Feed / Transport Section
1283
