Ricoh MP C3004 - Page 90

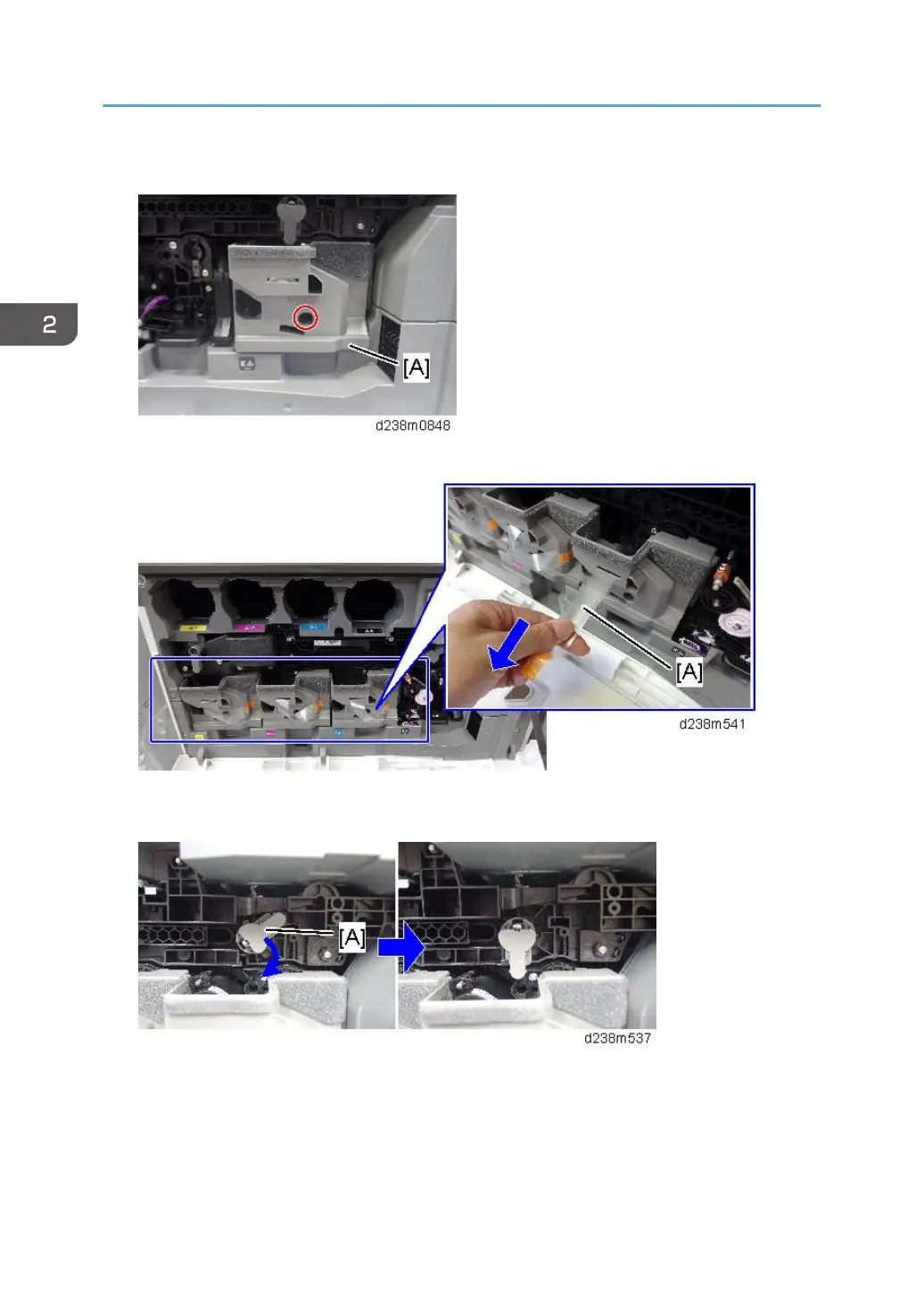

3. Attach the PCDU cover [A] provided with the accessories (Bk only).
4. Pull out the seals [A] for Y, M and C.
5. Rotate the ITB contact/separation lever [A] clockwise, and set it to the position in the
following picture.
2. Installation
82
