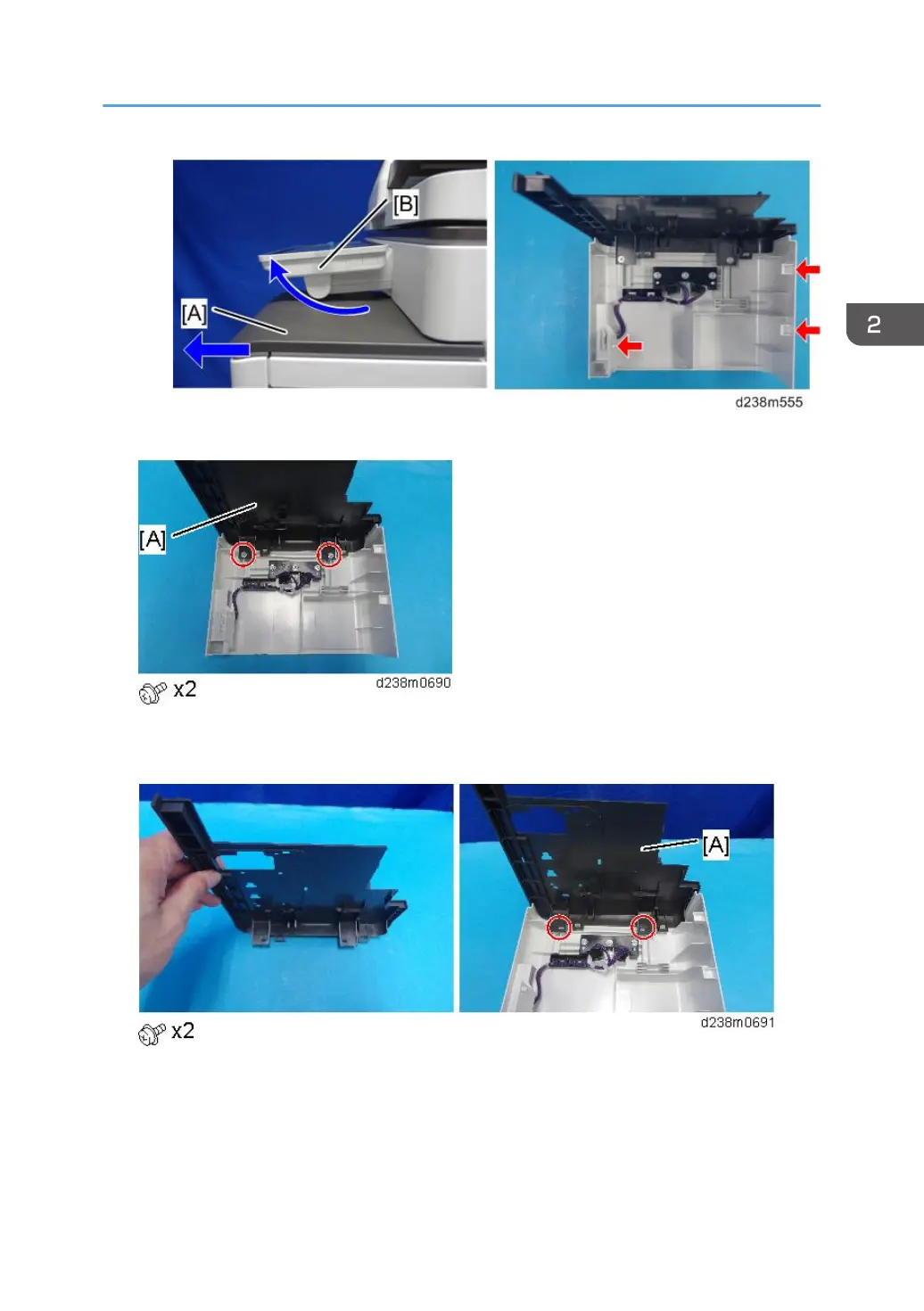

3. Remove the original upper cover [A]

4. Attach the corner cover [A] provided with this option.

Use the screws removed in the previous step.

Smart Card Reader Built-in Unit Type M19 (D3BS-22)

413
