Ricoh MP C3004 - Page 1299

To Next Page

To Previous Page

Tray 2, Paper Feed Unit PB3160 (D693), and Paper Feed Unit PB3150 (D694) are also changed from

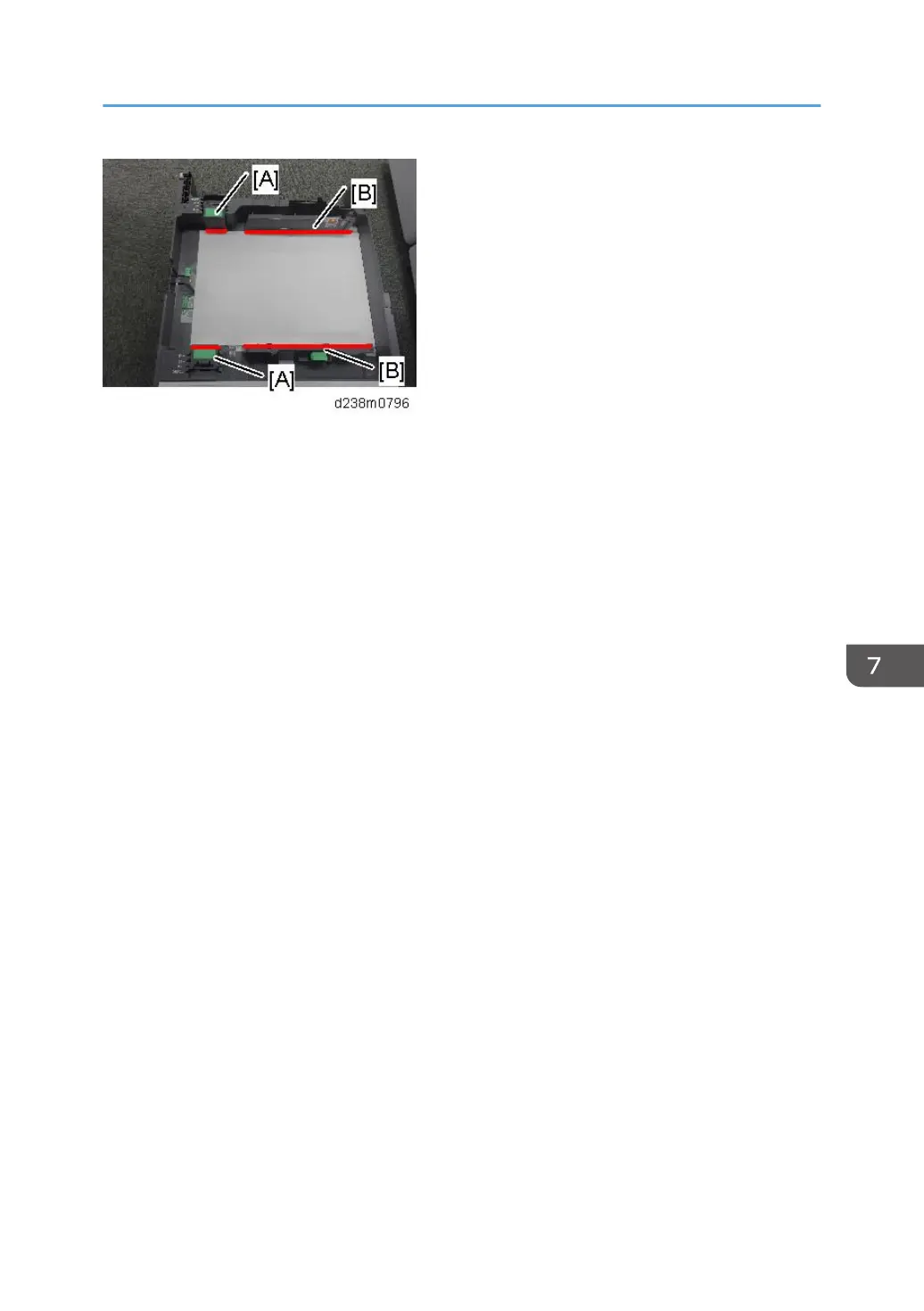

L-shaped sheet metal to support component.

Factory Default:

• Tray 2: A3 (11 inches for NA only)

• Optional Paper Tray: A3 for all regions

Paper Feed / Transport Section

1291

Main Page

Default Chapter3
