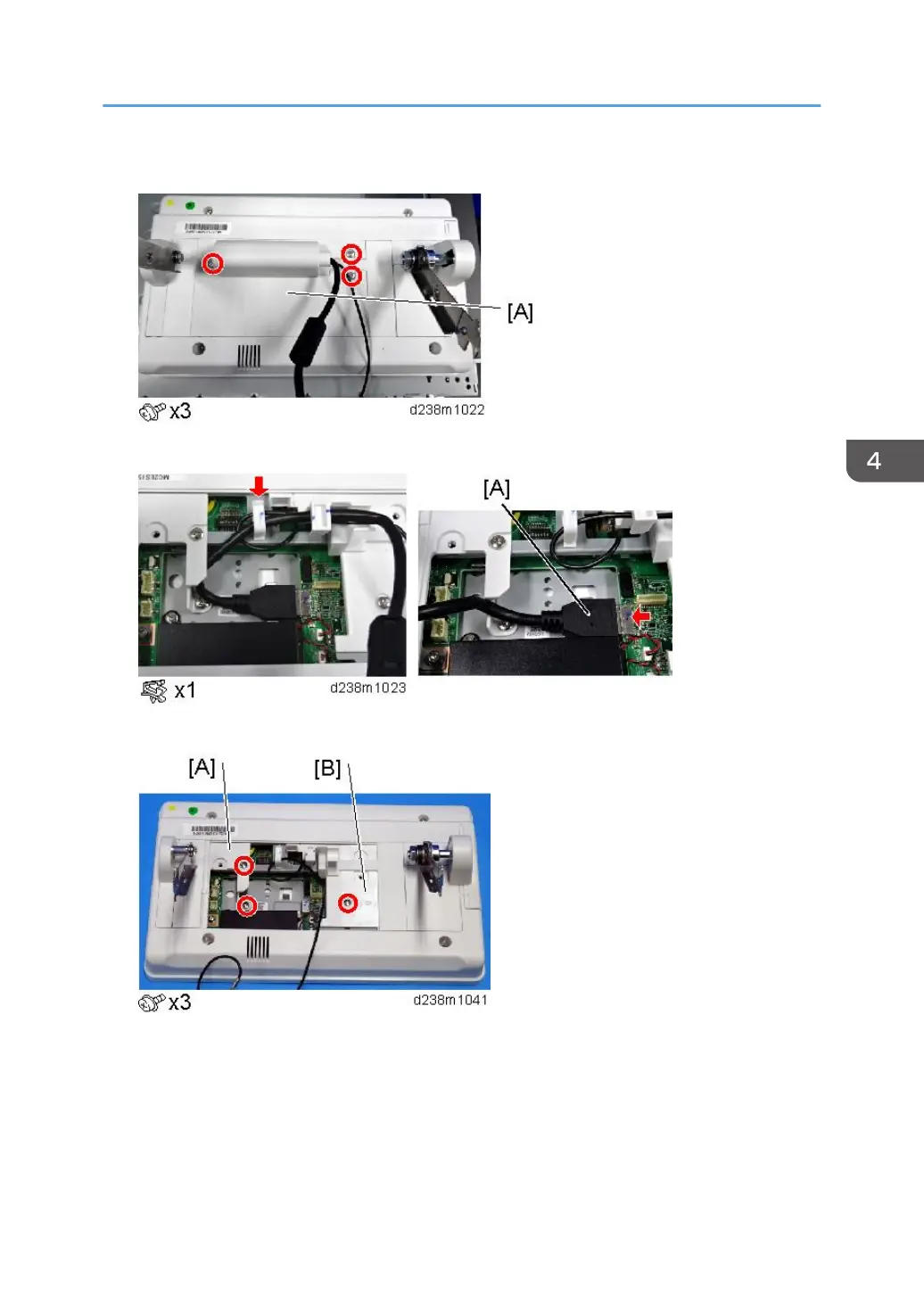

6. Rear center cover [A]

7. Disconnect the USB cable [A].

8. Left small cover [A], right small cover [B]

Smart Operation Panel

513
