3. Operation panel [A]

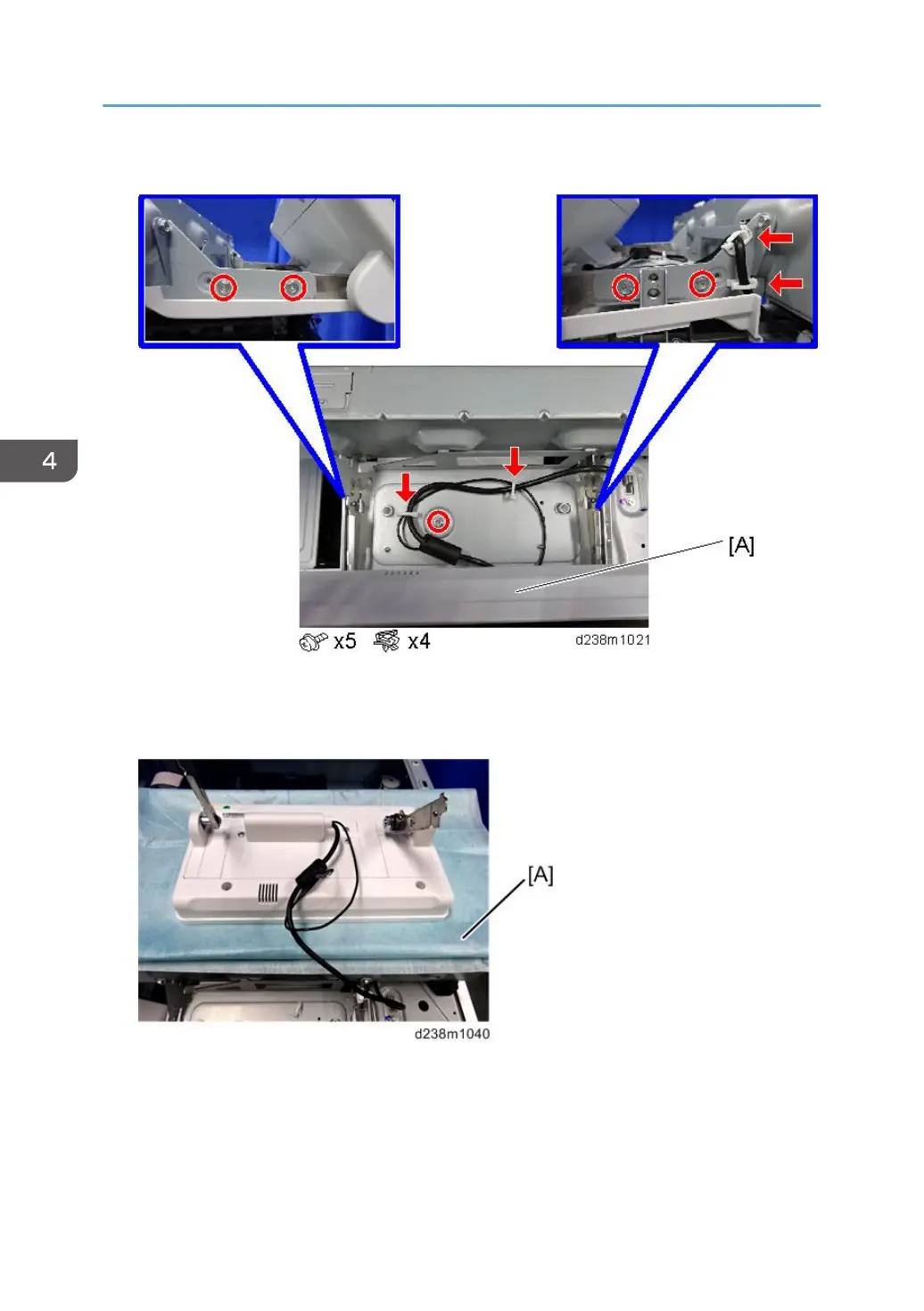

4. Open the platen cover or ADF.

5. Spread a cloth or service mat [A] on the exposure glass to protect the display. Place the

operation panel on the exposure glass so that the display faces down.

4. Replacement and Adjustment
