Ricoh MP C3004 - Page 523

3. Controller box cover (page 685)

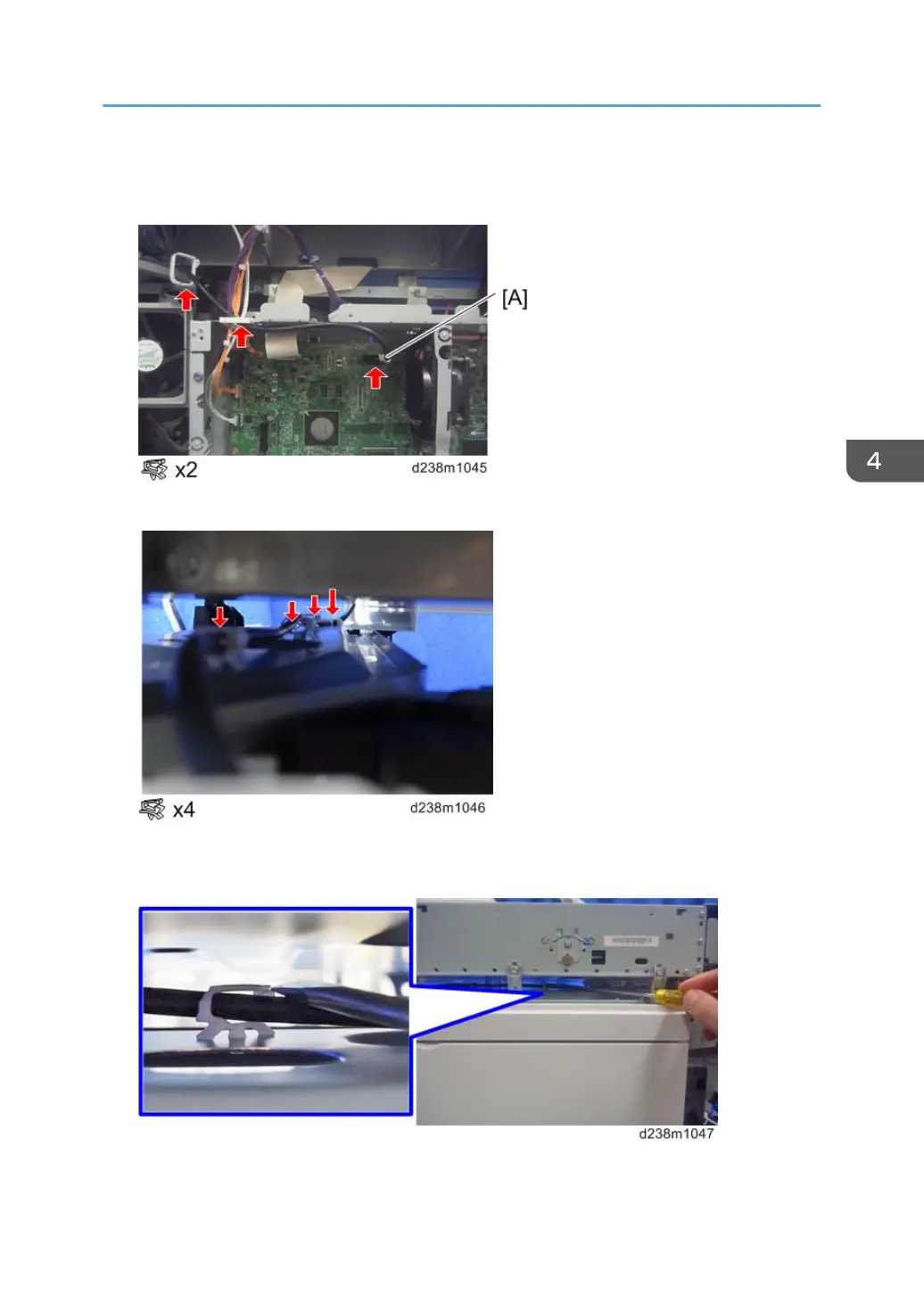

4. Disconnect the USB cable [A]
5. Remove the clamps on the cables under the scanner unit.
When removing a clamp, insert a long flathead screwdriver or such a tool from the side to remove
it.
Smart Operation Panel
515
