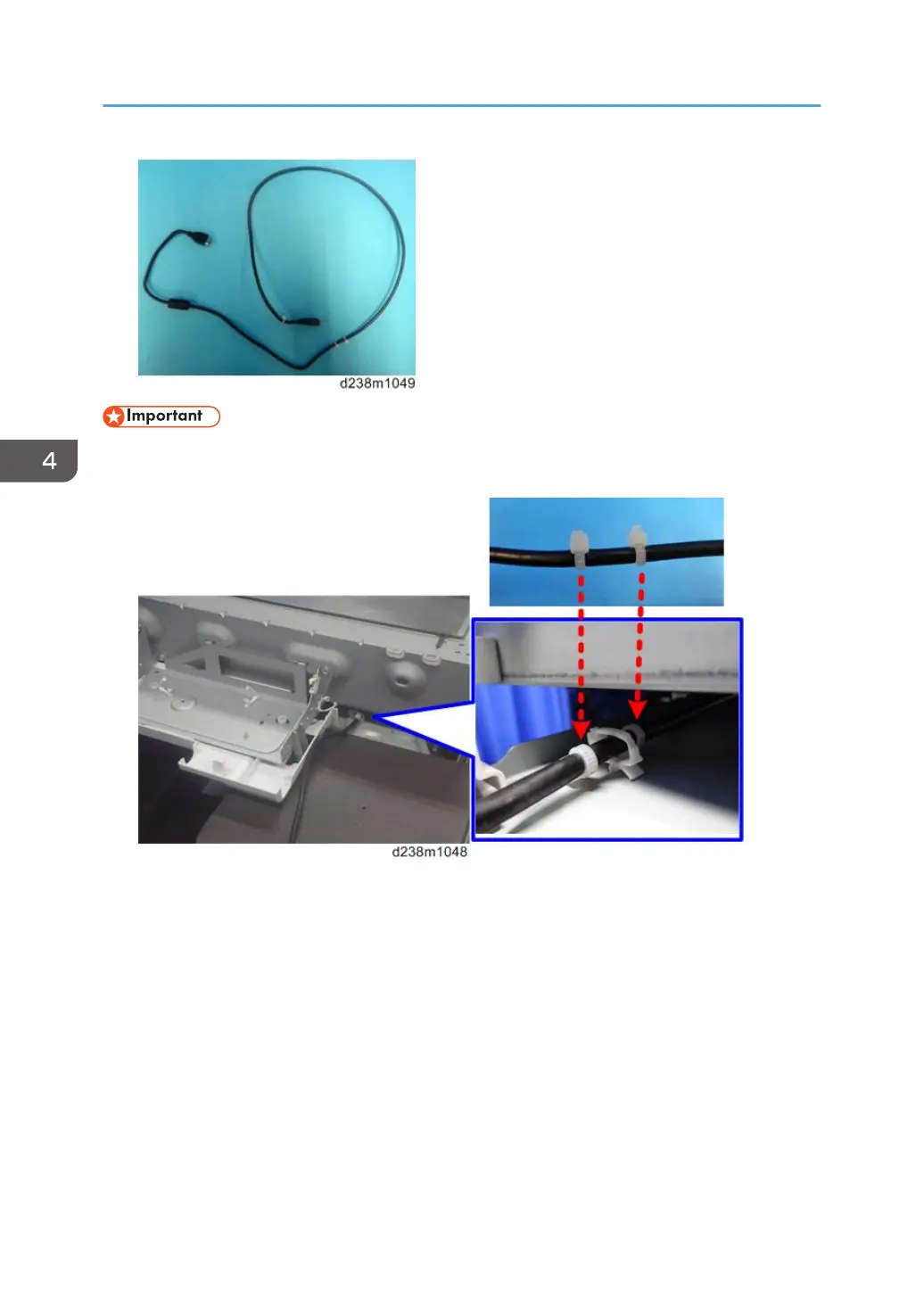

• The cable has a set of 2 cable ties. When attaching the cable, position the clamp between the two

cable ties.
