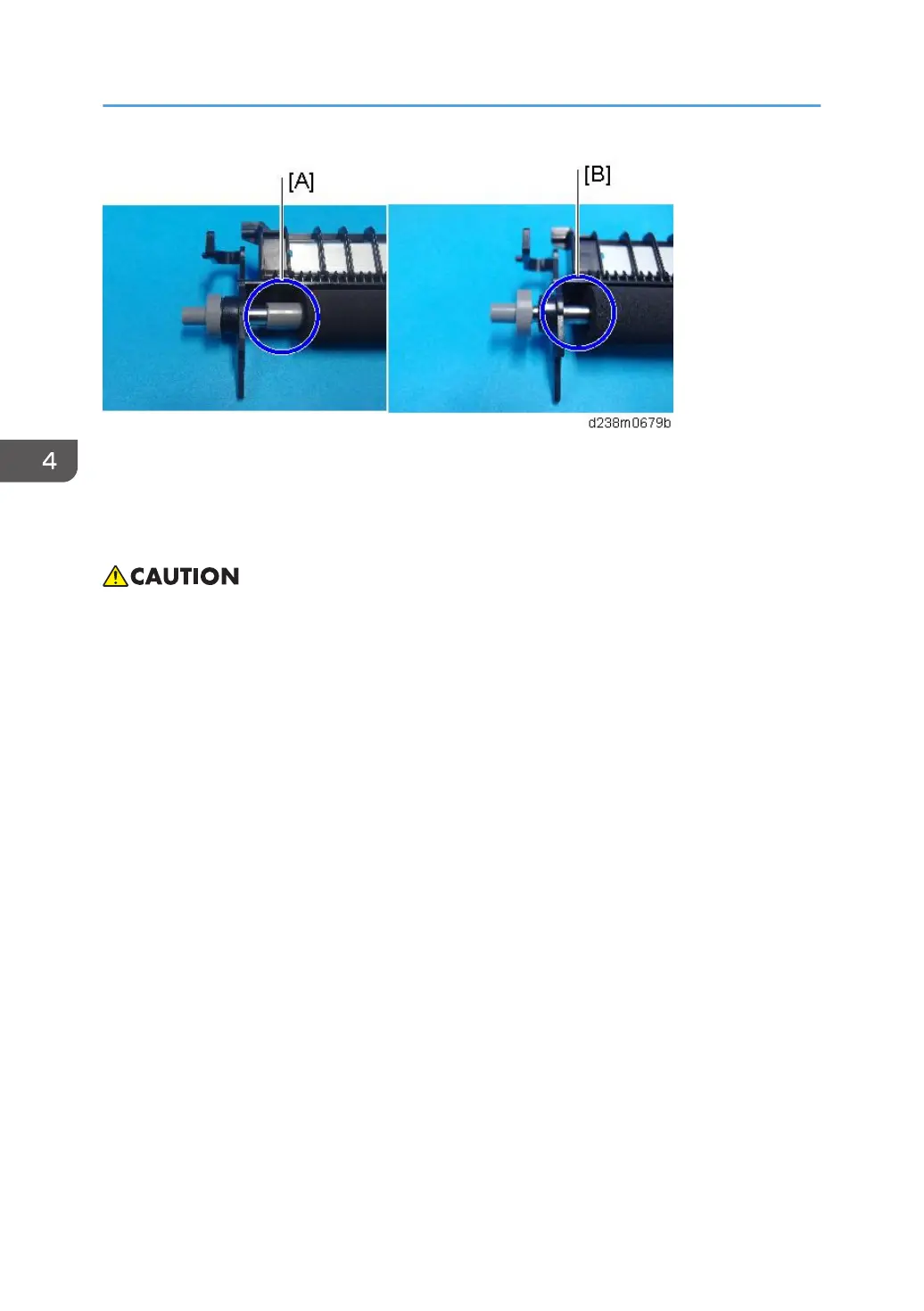

[A]: Standard roller
[B]: Imageable Area Extension Unit Type M19
When attaching the paper transfer roller, make sure that the roller is set in the correct position while
referring to the three points described below.
• If the paper transfer roller is set incorrectly, the following problems may occur.
• Damage to the image transfer belt
• Roller detachment when opening and closing the paper transfer roller unit to remove a paper
jam
• The paper transfer roller unit does not open
1. Check that the claw [A] on the roller holder is under the guide plate [B].
4. Replacement and Adjustment
584
