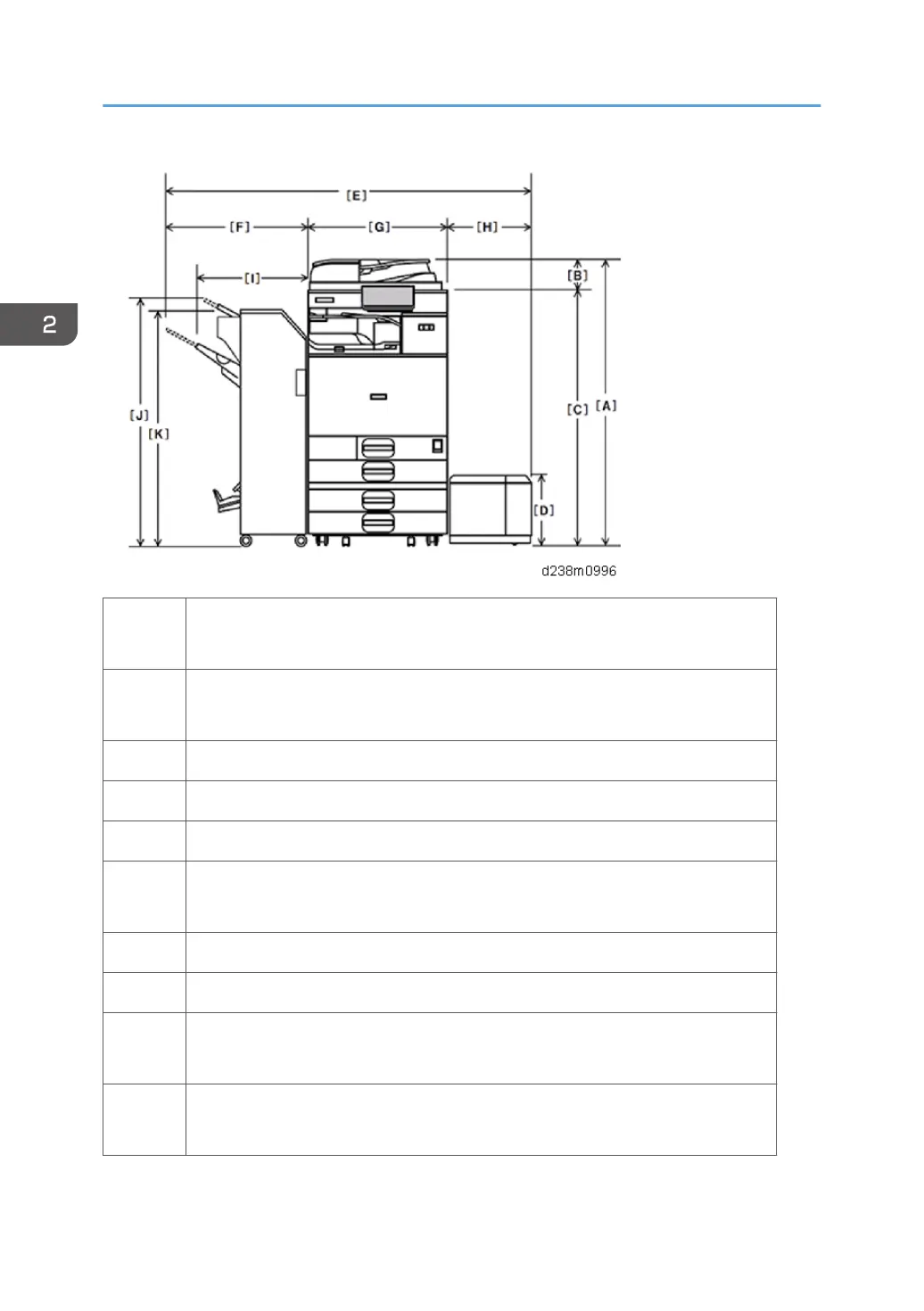

A
1,155mm / 45.47" (when equipped with ARDF)
1,205mm / 47.44" (when equipped with SPDF)
B
125mm /4.92" (when equipped with ARDF)
175mm /6.89" (when equipped with SPDF)
C 1,030mm /40.55"
D 290mm /11.41"
E 1,683mm / 66.26"
F 575 to 660mm / 22.63" to 25.98" (when equipped with SR3210)
657 to 756mm /25.86" to 29.76" (when equipped with SR3230)
G 587mm / 23.11"
H 340mm / 13.38"
I 575mm / 22.63" (when equipped with SR3210)
657mm / 25.86" (when equipped with SR3230)
J 1,045mm / 41.14" (when equipped with SR3210)
1,028mm / 40.47" (when equipped with SR3230)
2. Installation
60
