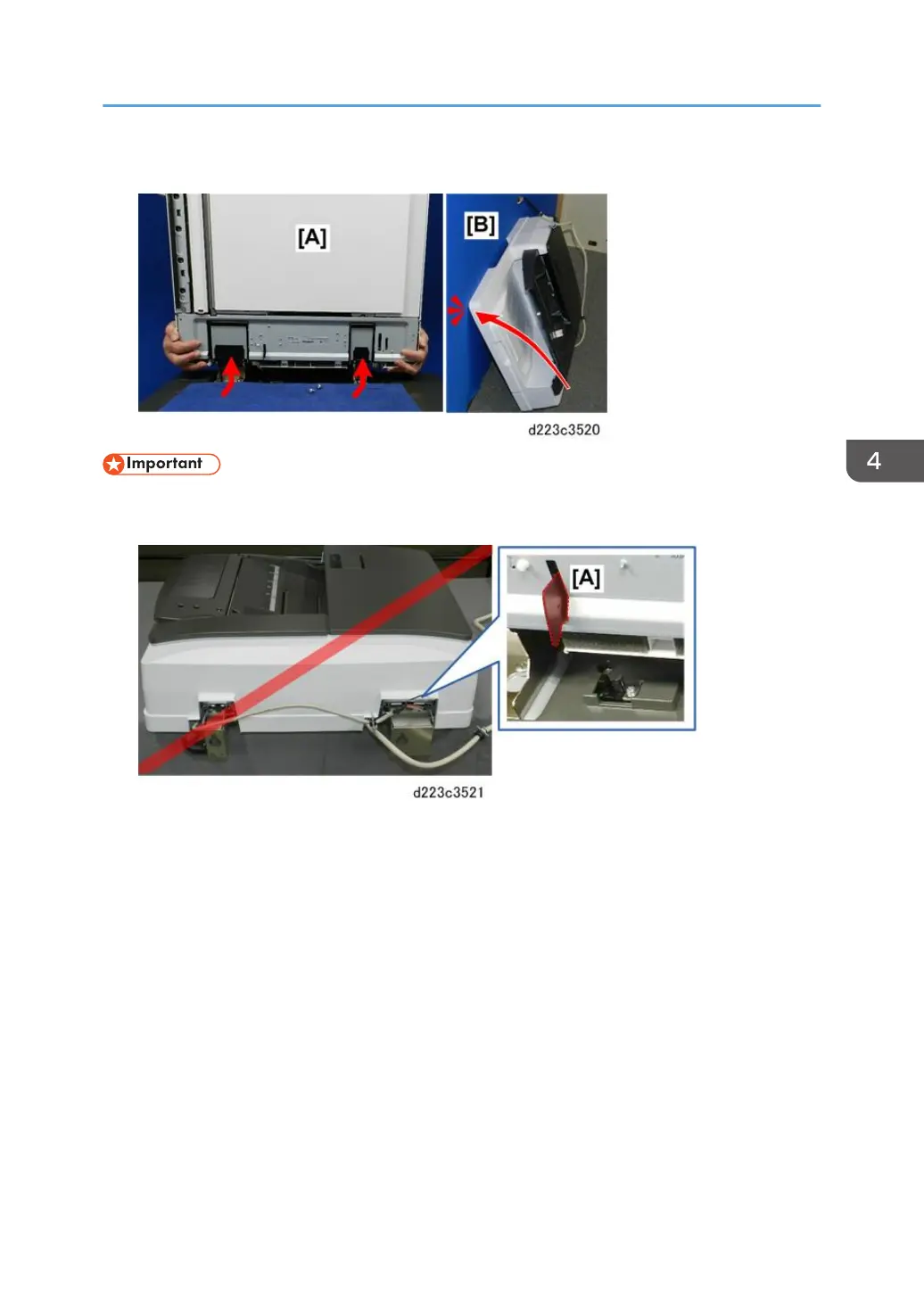

5. Set the ADF on its edge on the floor, and then lean it against a wall [B].
• To prevent damage to the fragile feelers [A] of the ADF position sensor, never lay the ADF on a flat
surface as shown below.
• If the SPDF DF3100 is being replaced, do SP4-730-002 after the new SPDF has been installed.
SP descriptions
• SP4-730-002 (FROM Main Factory Setting Execution ON/OFF)
Copies the parameters written in FROM in the SPDF to the engine board in the MFP. This SP is
only for the SPDF models.
ADF
519
