Ricoh MP C3004 - Page 1156

To Next Page

To Previous Page

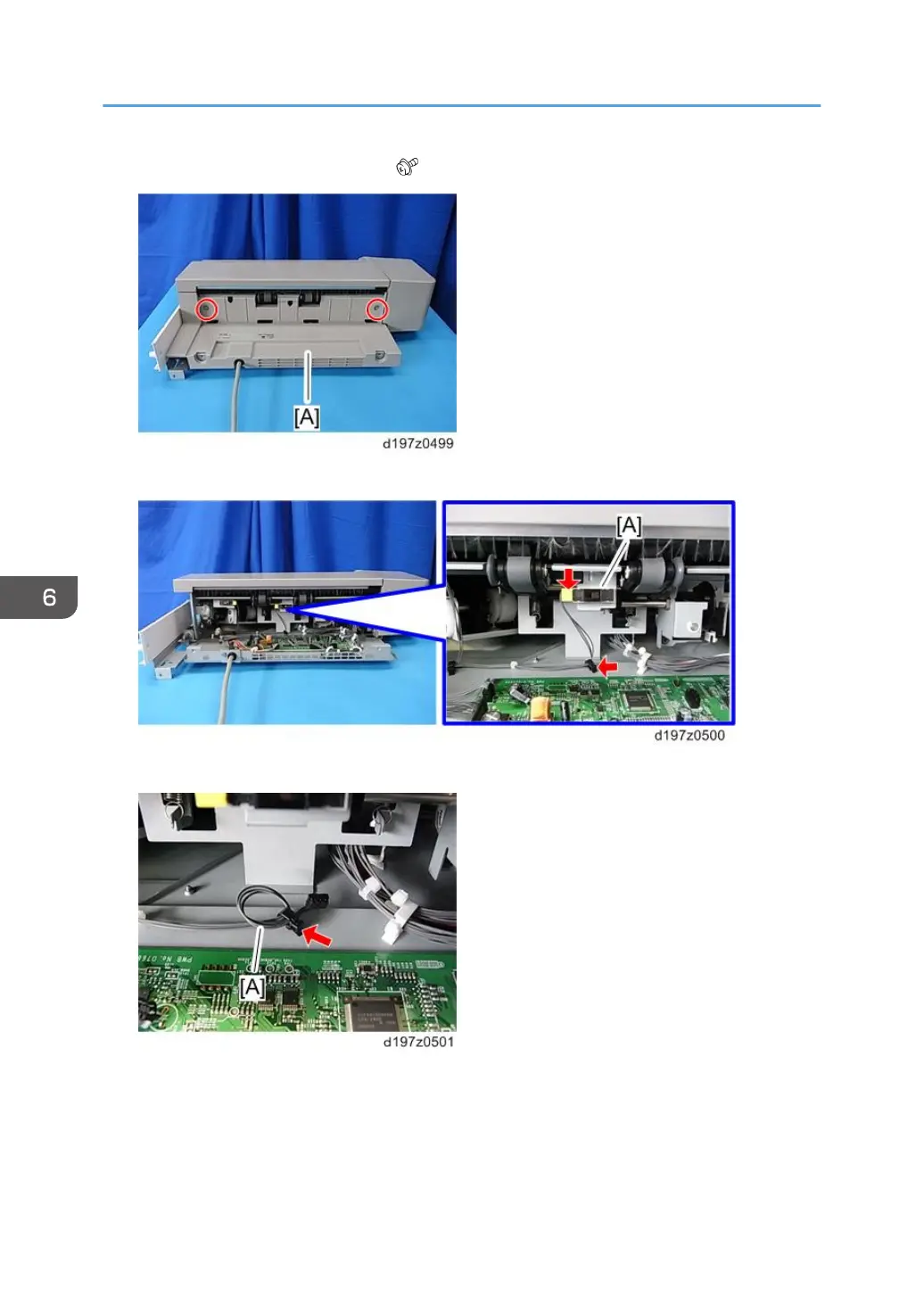

1. Remove the paper exit cover [A] ( ×2)

2. Release the clamp and disconnect the harness of the paper exit full sensor 1 [A].

3. Loop and clamp the harness [A] as shown.

6. Troubleshooting

1148
