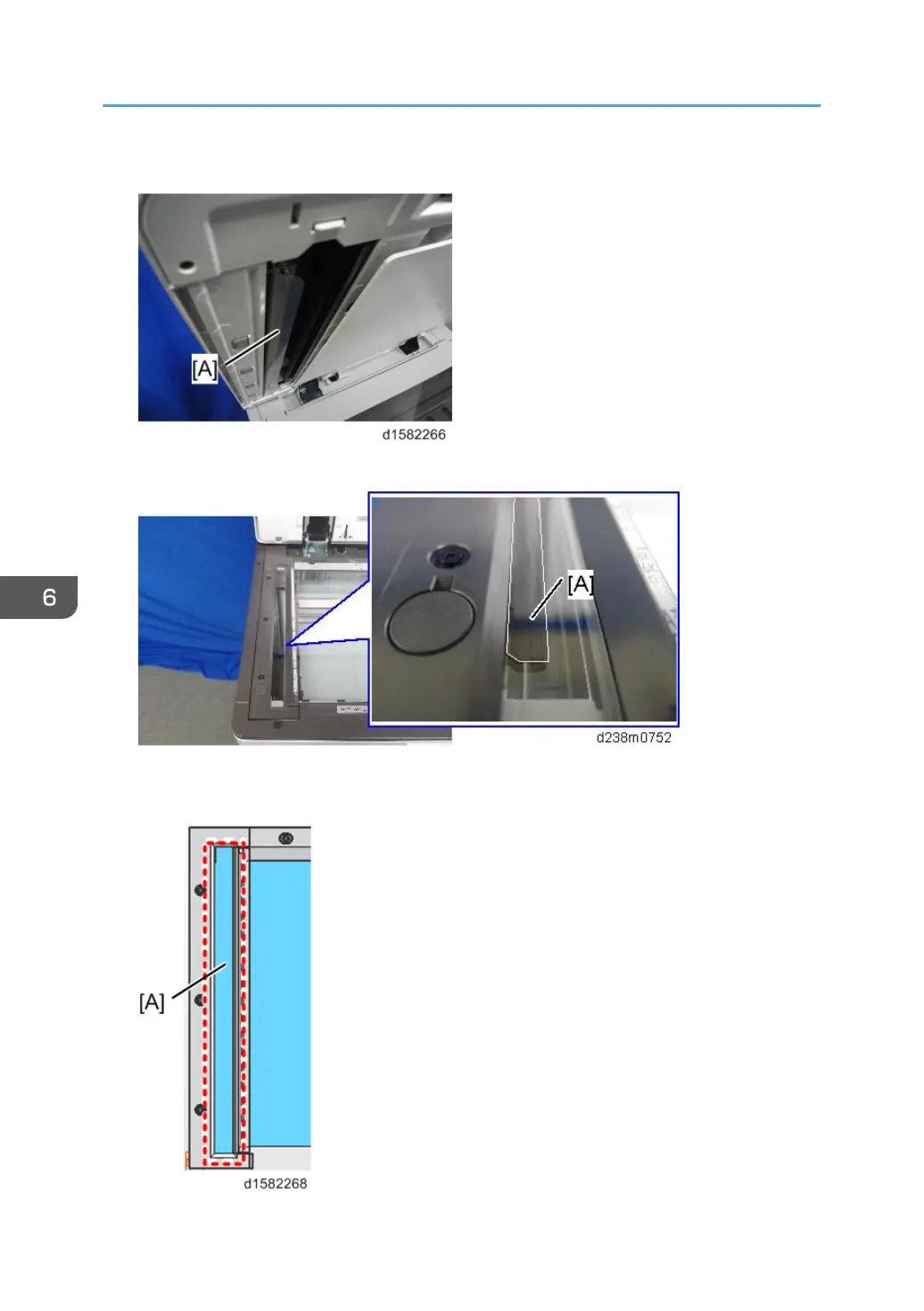

6. Mount the scanning guide plate, taking care not to damage the sheet [A].

7. Peel off the gap sheet [A] from the DF exposure glass with your hands.

8. Clean the DF exposure glass [A] with alcohol.

To avoid paper jams, make sure adhesive is completely removed.
