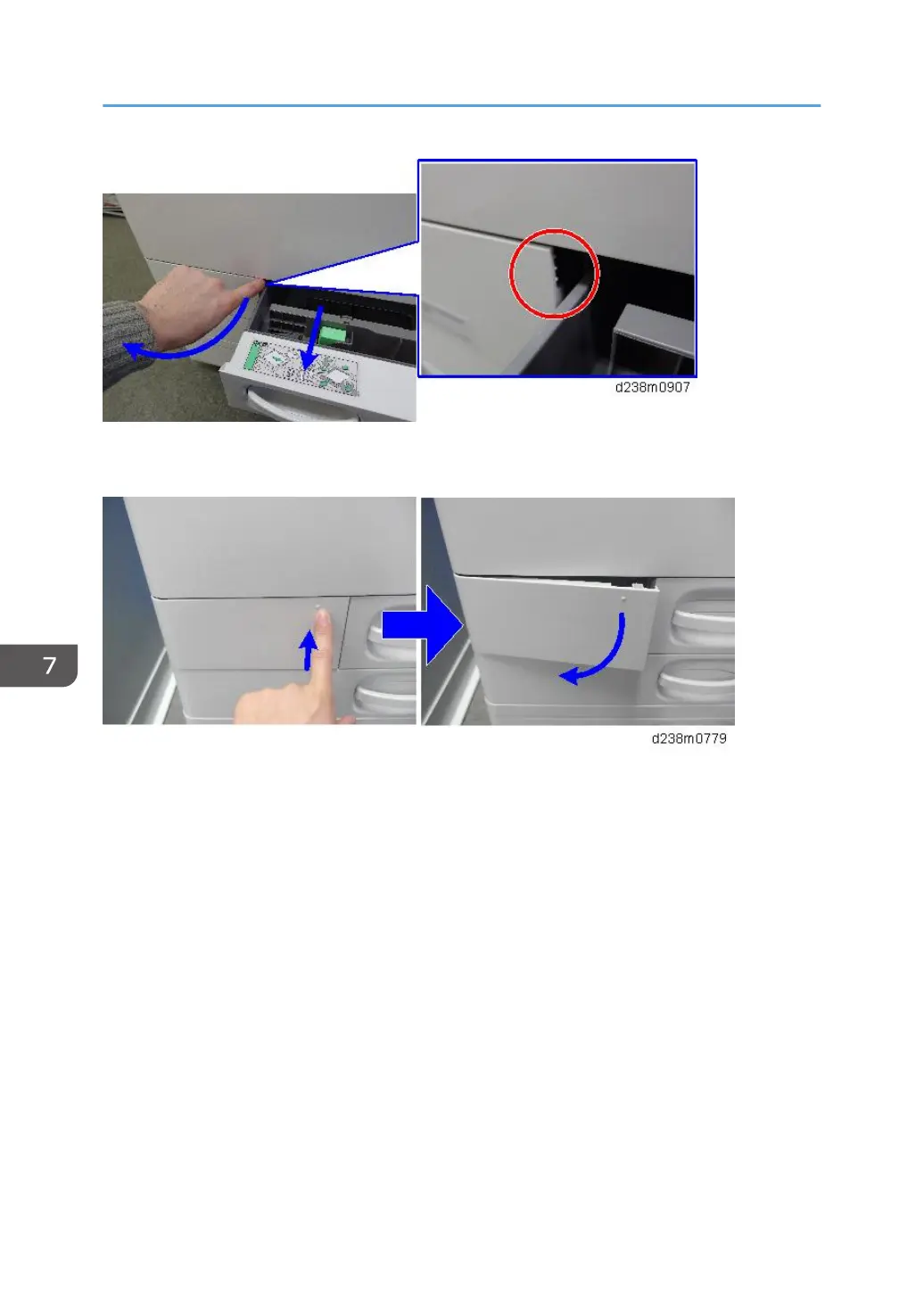

The waste toner cover of the previous machine (MP C3003/C3503/C4503/C5503/C6003) is

opened by pressing it with your fingers.
