Ricoh MP C3004 - Page 127

To Next Page

To Previous Page

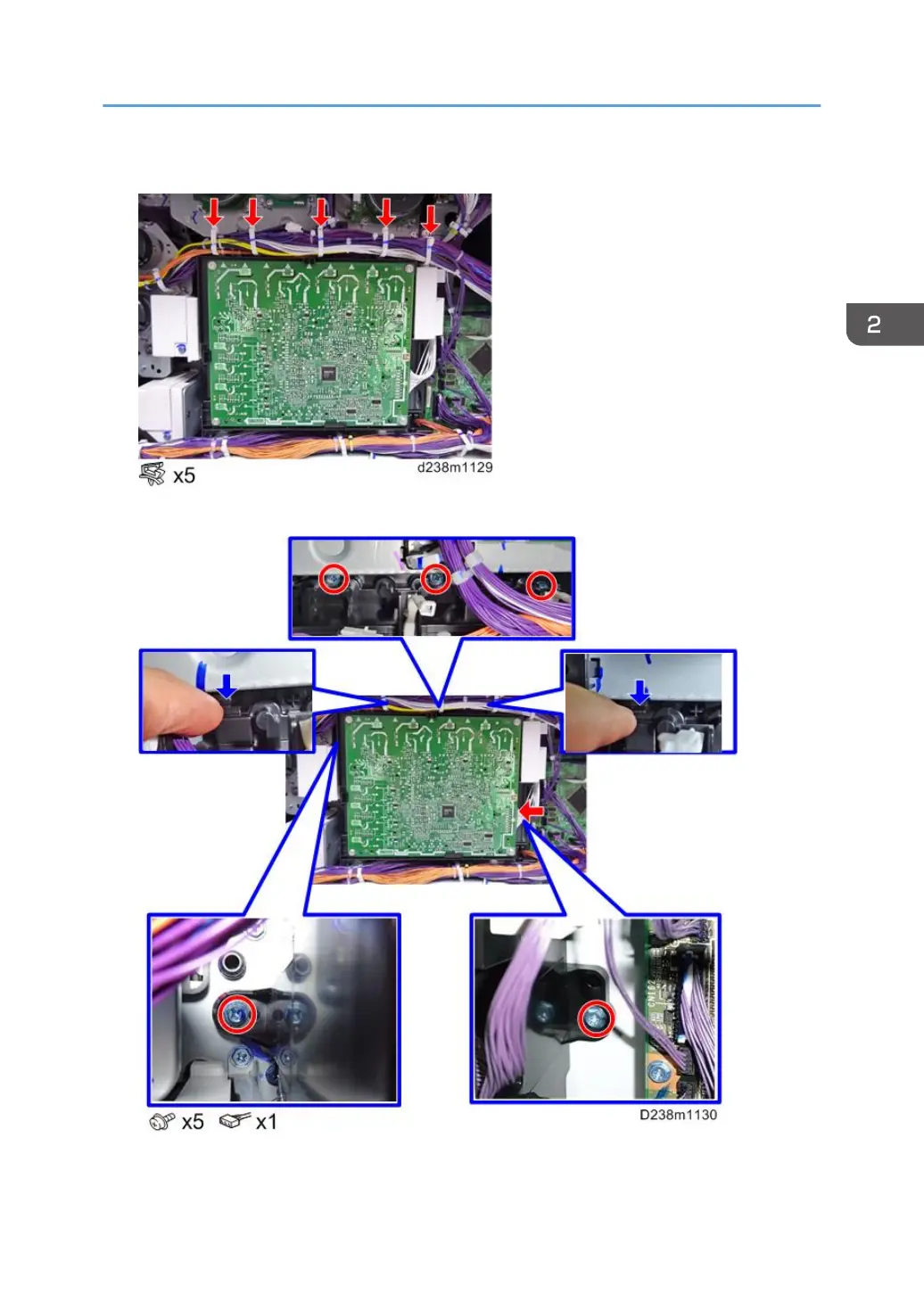

4. Release the 5 clamps.

5. Remove the HVP-CB with bracket [A] (Hook x2).

Anti-Condensation Heater (Scanner, PCDU)

119
