Ricoh MP C3004 - Page 1280

To Next Page

To Previous Page

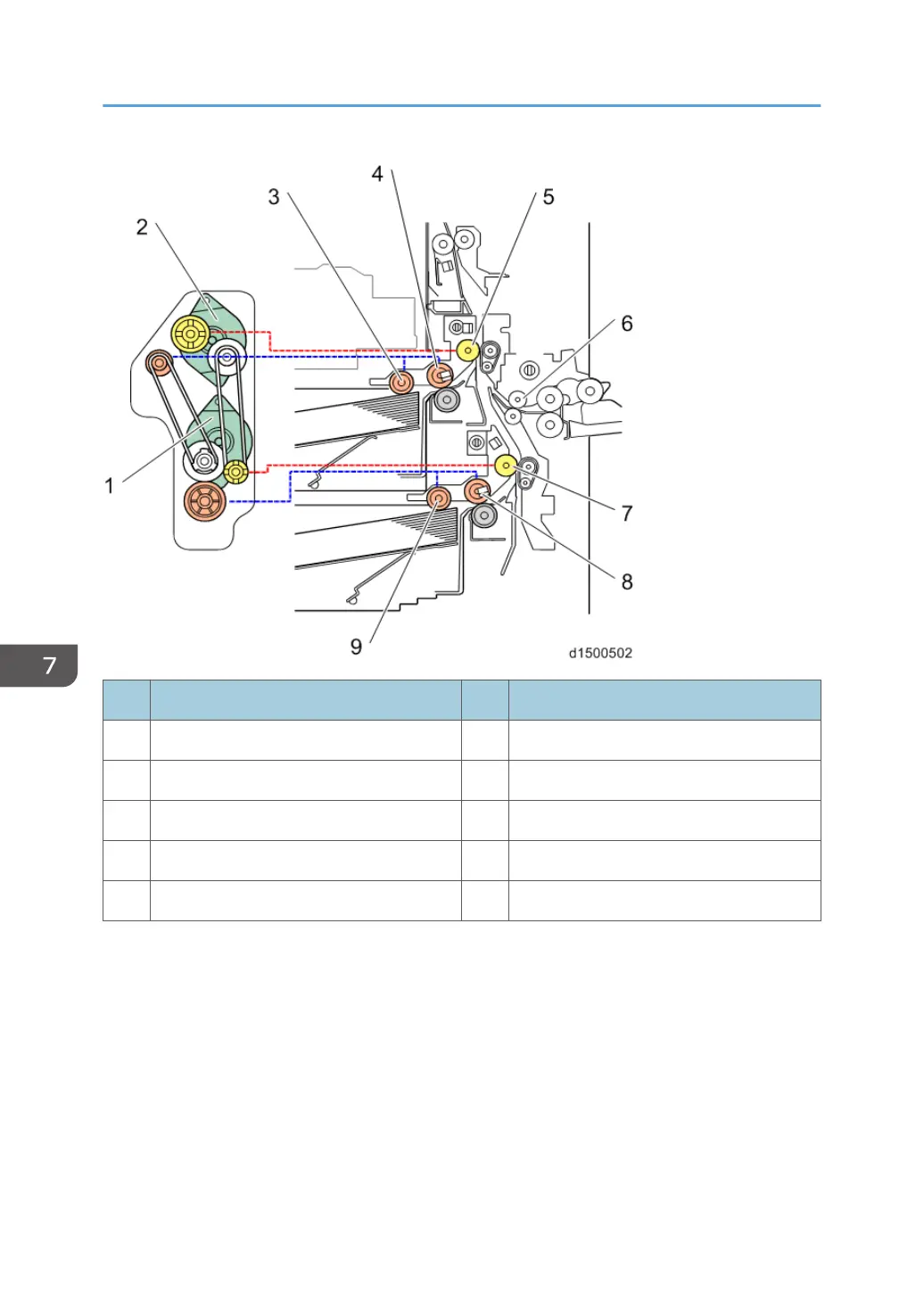

No. Description No. Description

1 Paper feed motor 6 By-pass transport roller

2 Transport motor 7 Transport roller (2nd tray)

3 Pick-up roller (1st tray) 8 Paper feed roller (2nd tray)

4 Paper feed roller (1st tray) 9 Pick-up roller (2nd tray)

5 Transport roller (1st tray)
