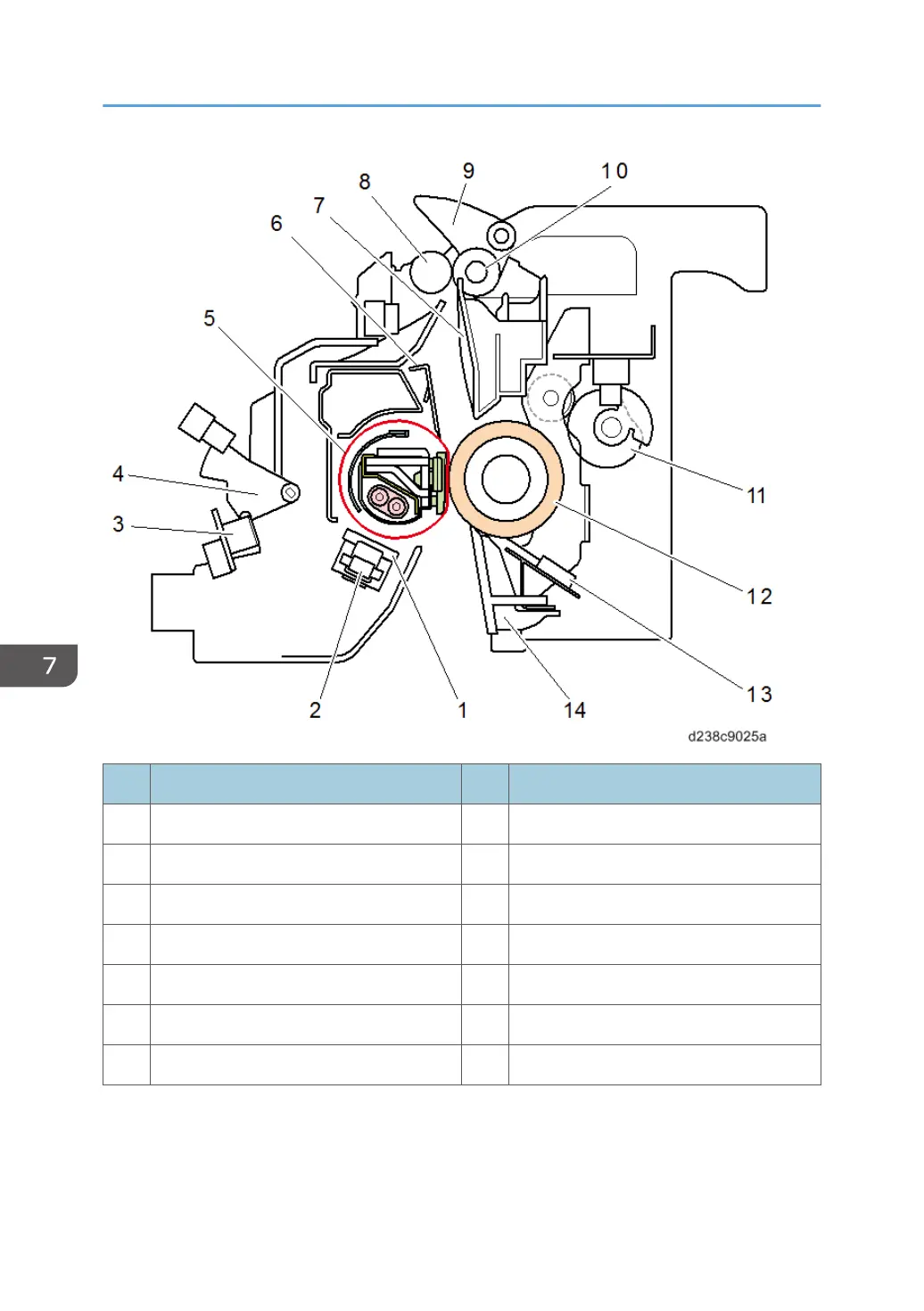

No. Description No. Description
1 Heating roller thermostats 8 Fusing exit roller (driven)
2 Non-contact Thermistor 9 Fusing junction gate
3 Shield feeler 10 Fusing exit roller (drive)
4 Thermopile 11 Pressure roller drive cam
5 Heating Sleeve 12 Pressure roller
6 Stripper Plate 13 Pressure roller thermistor: Center, End
7 Fusing exit guide plate 14 Fusing entrance guide plate
