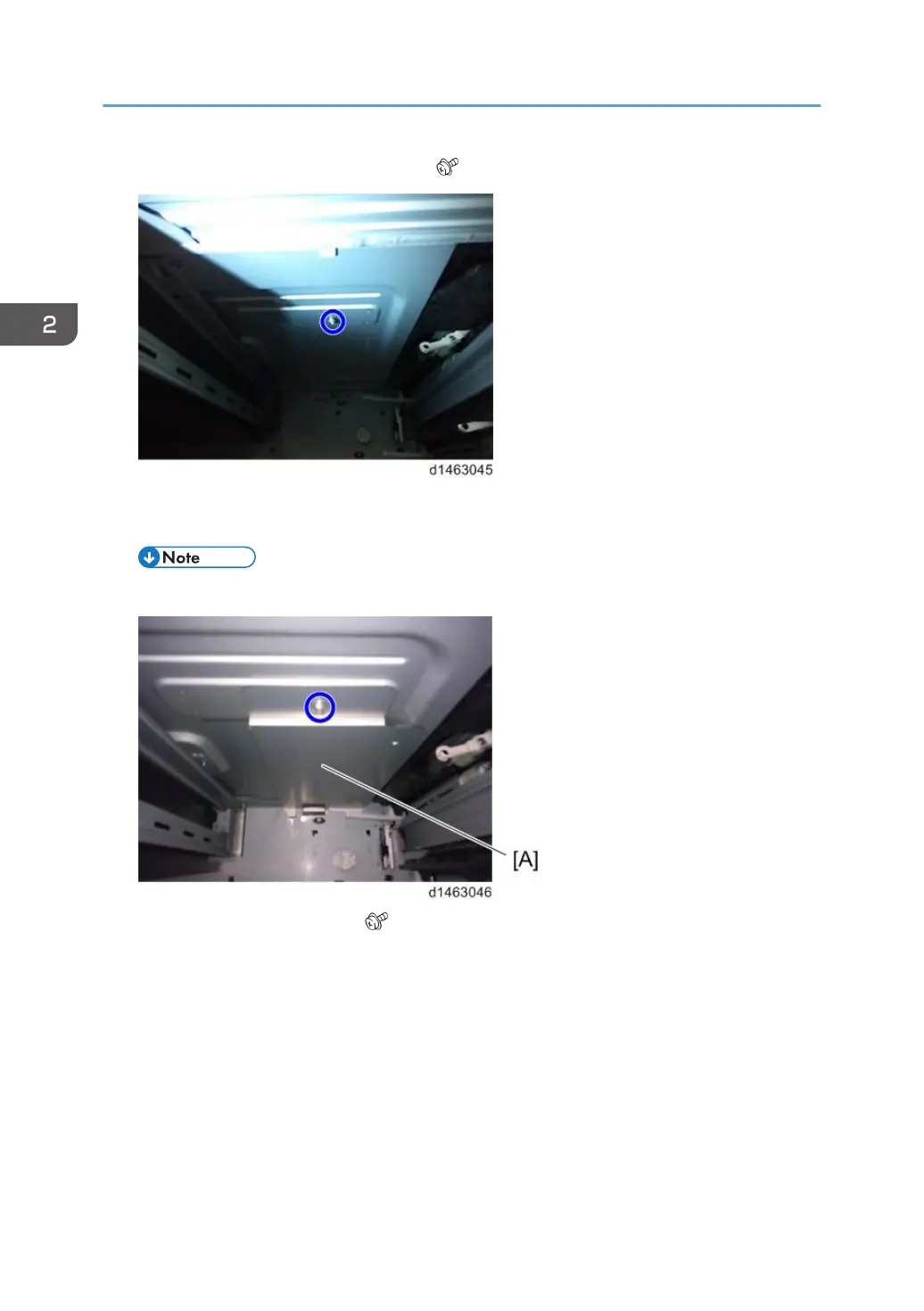

18. Temporarily tighten a screw at the top ( M3x8: x1).

19. Install the heater [A] by connecting the connector to the inside of the machine, then

tighten the screw completely.

• Hold the heater against the inside during final tightening.

20. Reinstall the connector cover ( × 1).

2. Installation

126
