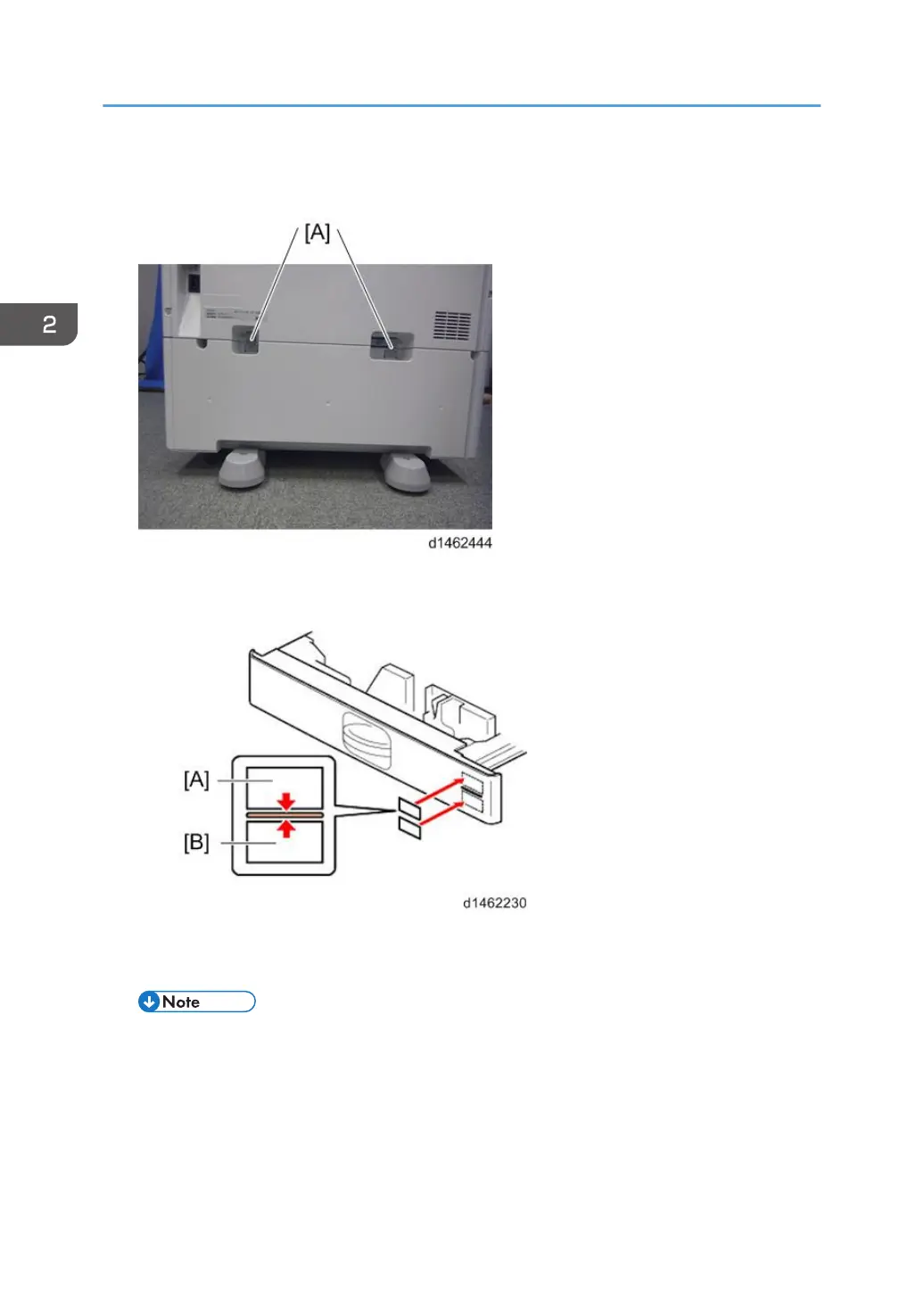

5. Attach the securing brackets [A] to two positions on the left and right at the rear of the
machine (screws: 1 each).
6. Reattach the paper feed tray to the machine
7. Attach the decals as shown below.
[A]: Tray number decal
[B]: Paper size decal
• The tray number decal and paper size decal are packaged together with the machine.
2. Installation
144
