12. Adjust the registration for the paper feed unit.
SP1-002-004 (Side-to-Side Registration Paper Tray 3)

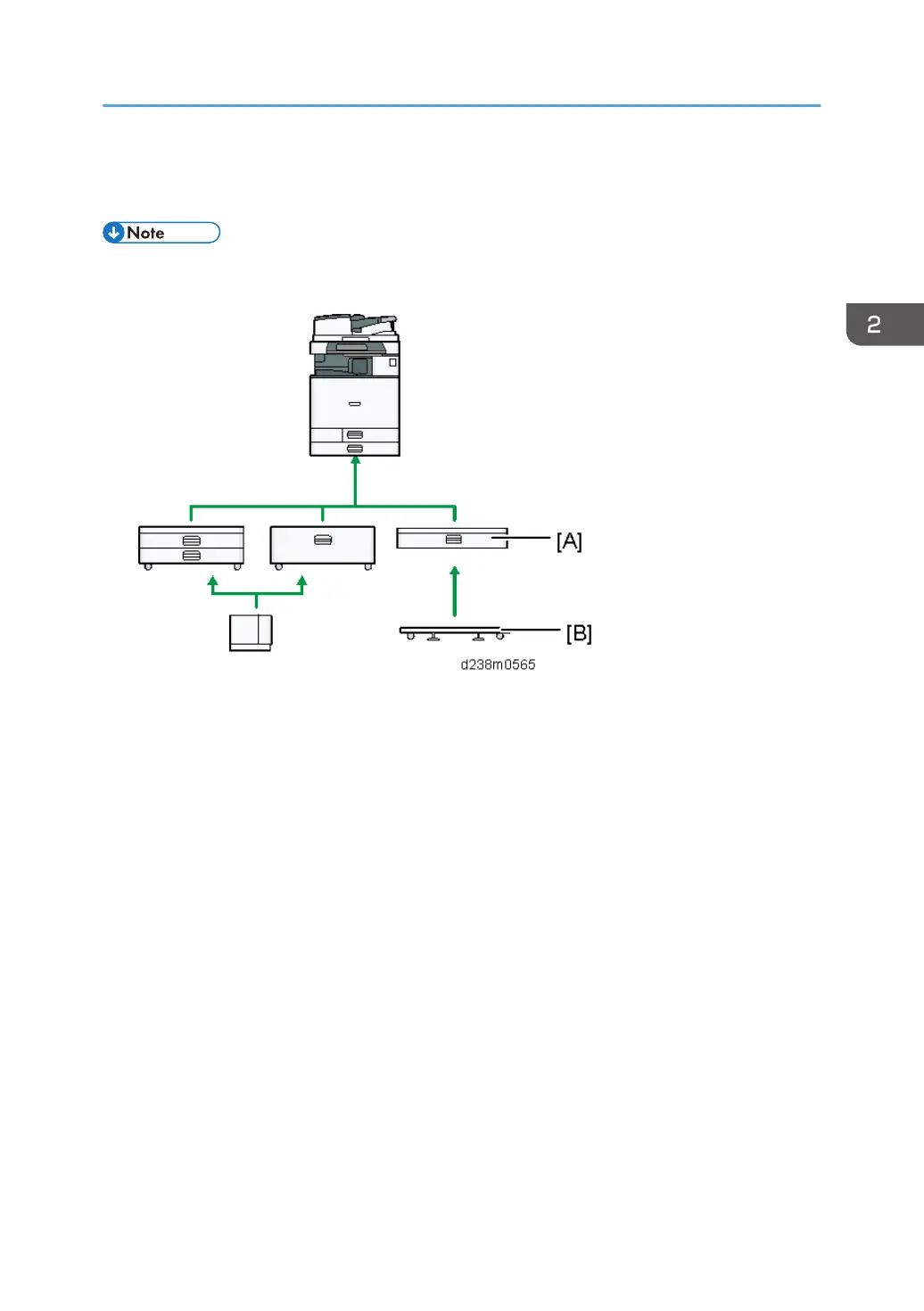

• Paper Feed Unit PB3150 [A] is not supplied with a caster. You can attach the optional Caster Table
Type M3 [B] (page 178).
SP descriptions
• SP1-002 (Side-to-Side Registration)
Adjusts the side-to-side registration by changing the laser main scan start position for each
mode and tray.
Increasing a value: The image is moved towards the rear edge of the paper.
Decreasing a value: The image is moved towards the front edge of the paper.
Paper Feed Unit PB3150 (D694)
151
