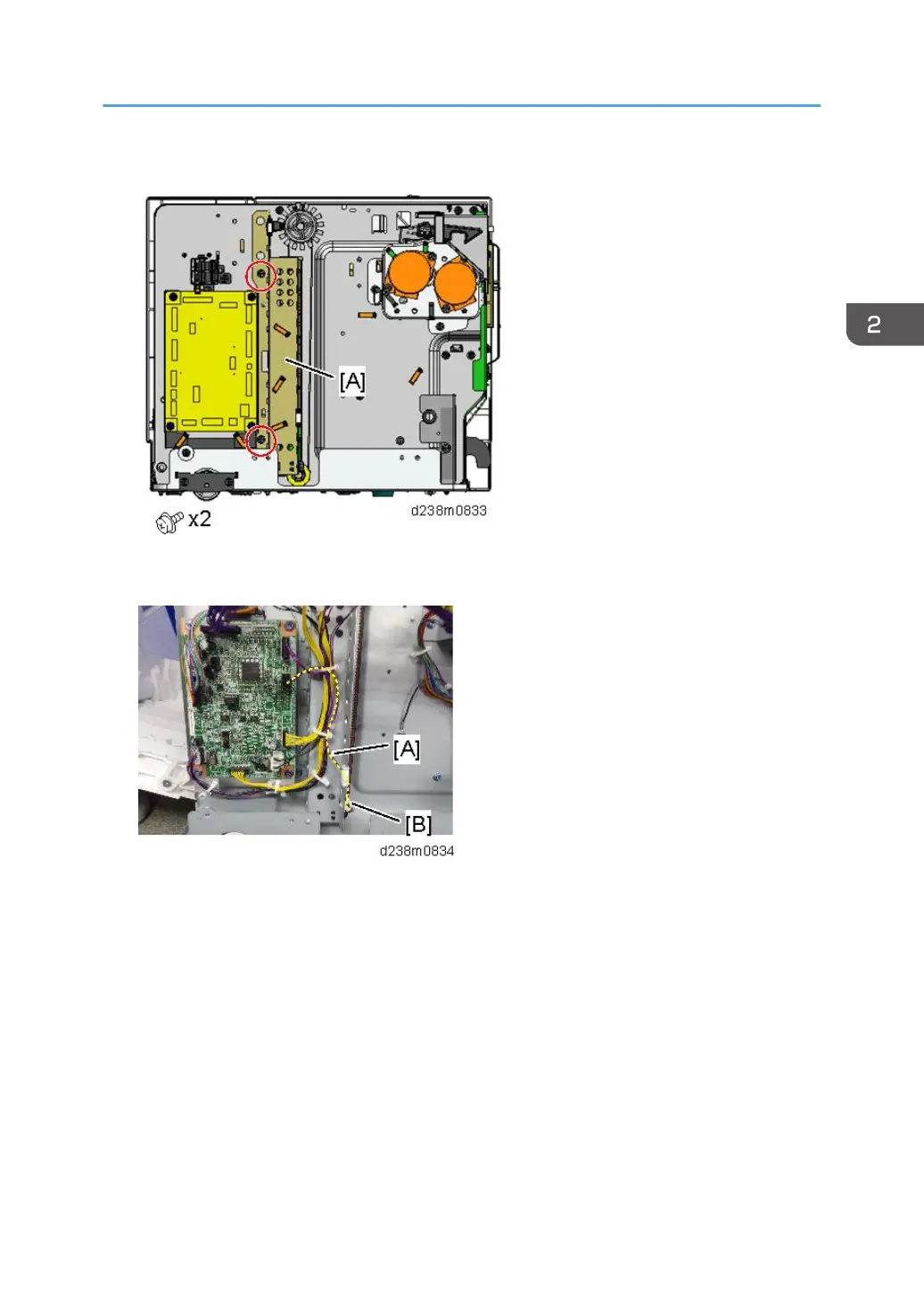

18. Attach the bracket for the remaining paper sensor [A].
19. Replace the harness [A] with the harness for increased LCIT capacity, attach the clamp
[B], and then connect it to the tray’s lower limit sensor.
20. Reattach the removed unit and cover.
LCIT RT3030 (D696)
177
