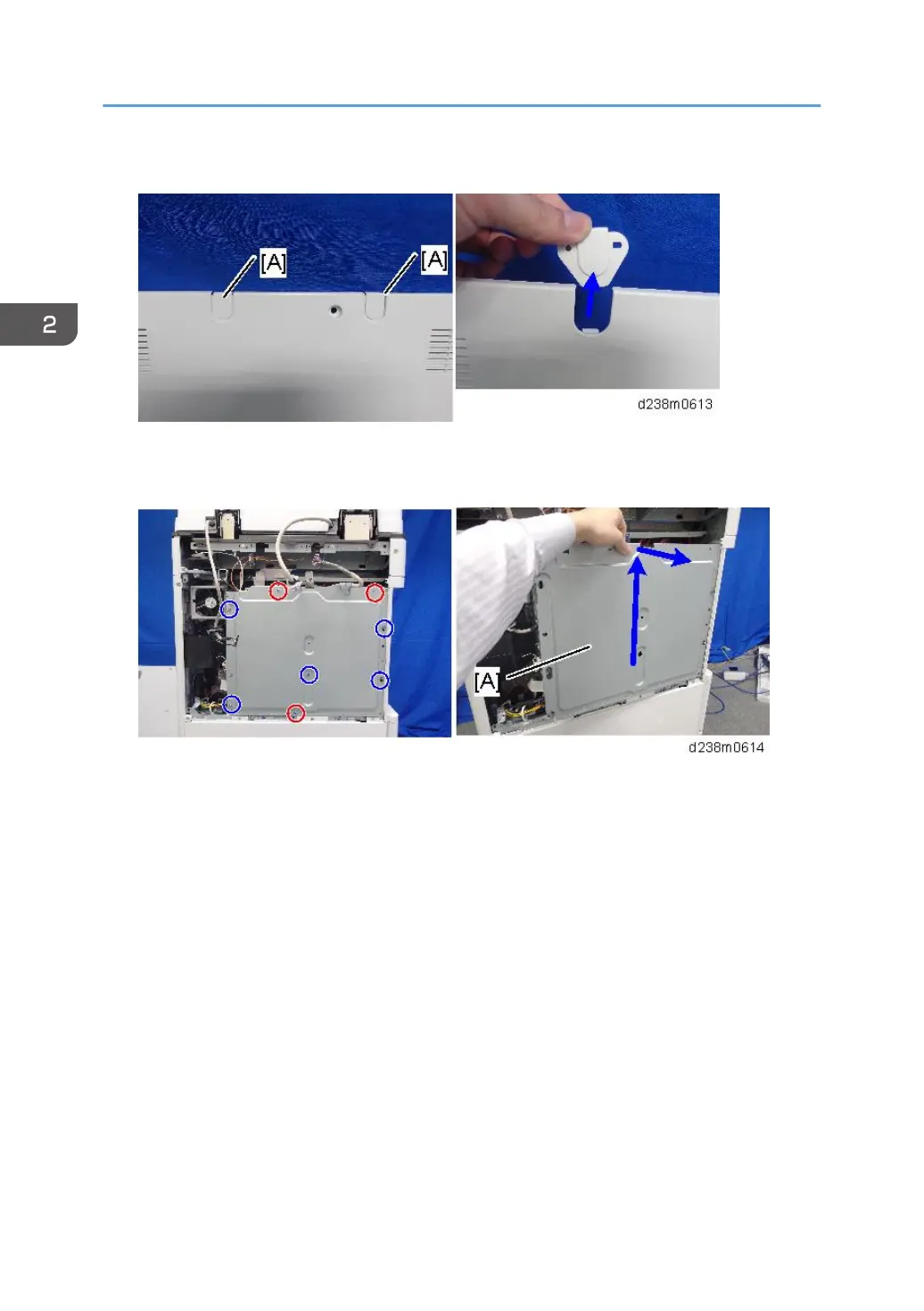

12. Remove the small disposable covers [A] on the rear cover.

13. Remove the controller box cover [A].

Red Circle: Remove, Blue Circle: Loosen

14. Connect the SPDF cable as shown and mount the brackets [A] [B] on the machine’s rear

frame.

Make sure to connect the grounding wire.
