Ricoh MP C3004 - Page 229

To Next Page

To Previous Page

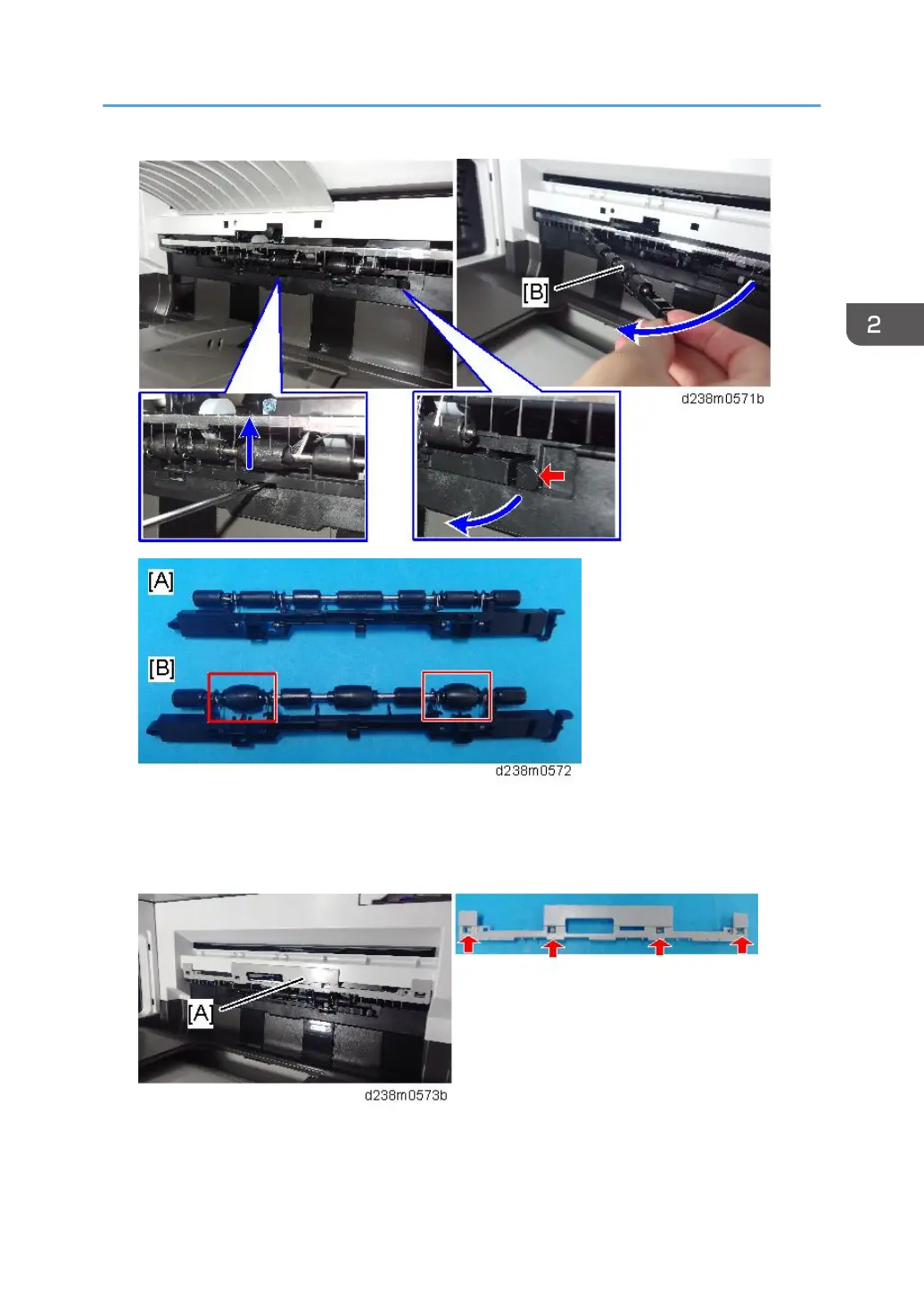

[A]: The supplied driven roller has flat rollers.

[B]: The machine’s standard driven roller has drum-type rollers (as indicated by red frames).

6. Attach the paper support guide [A] (Tab x4 ).

Side Tray Type M3 (D725)

221
