Ricoh MP C3004 - Page 232

To Next Page

To Previous Page

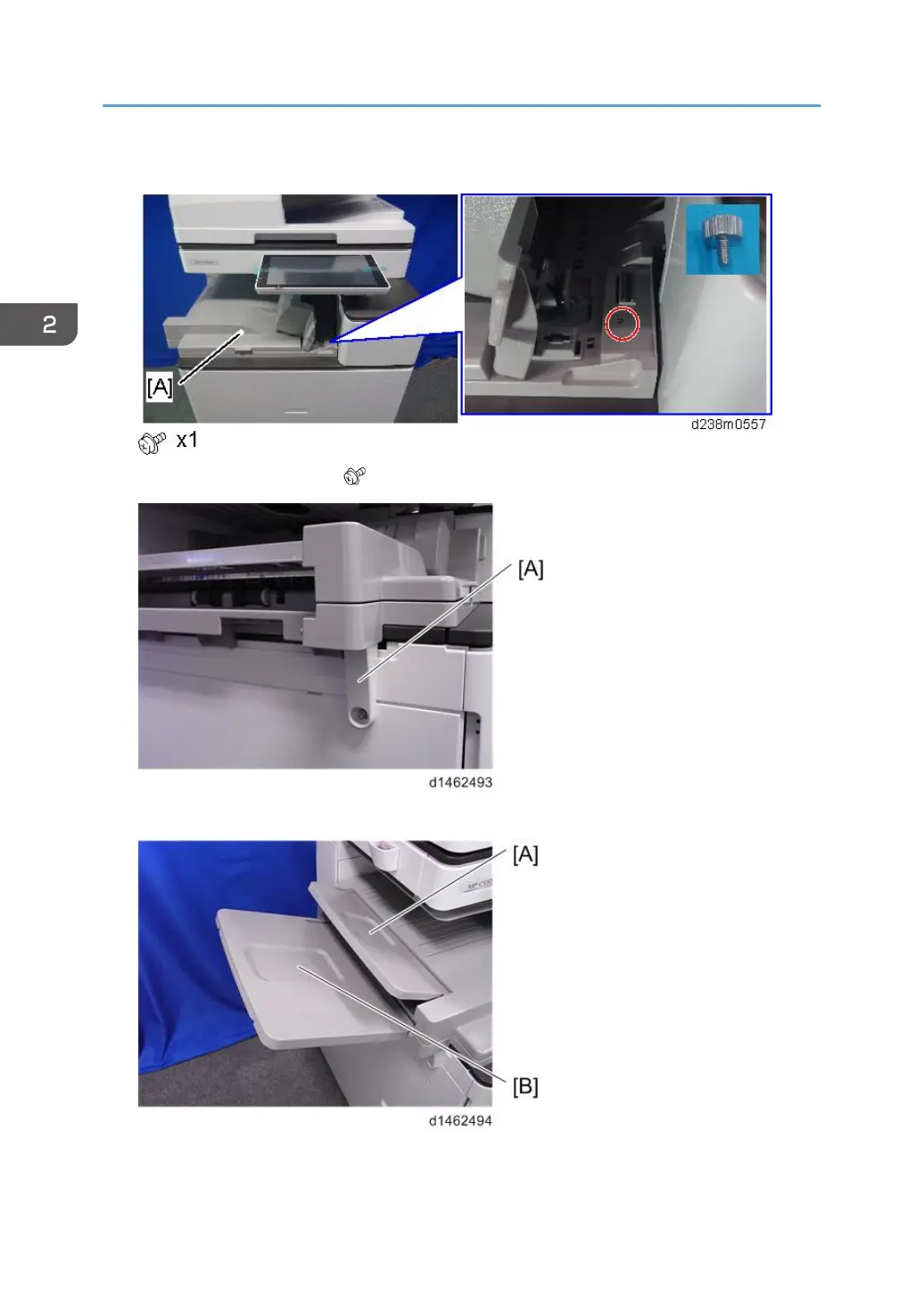

13. Attach the side tray unit [A] to the machine, and fix with a knob screw.

14. Attach the fixing plate [A] ( ×1).

15. Attach the upper extension tray [A] and the left extension tray [B].

16. Turn ON the main power.

2. Installation
