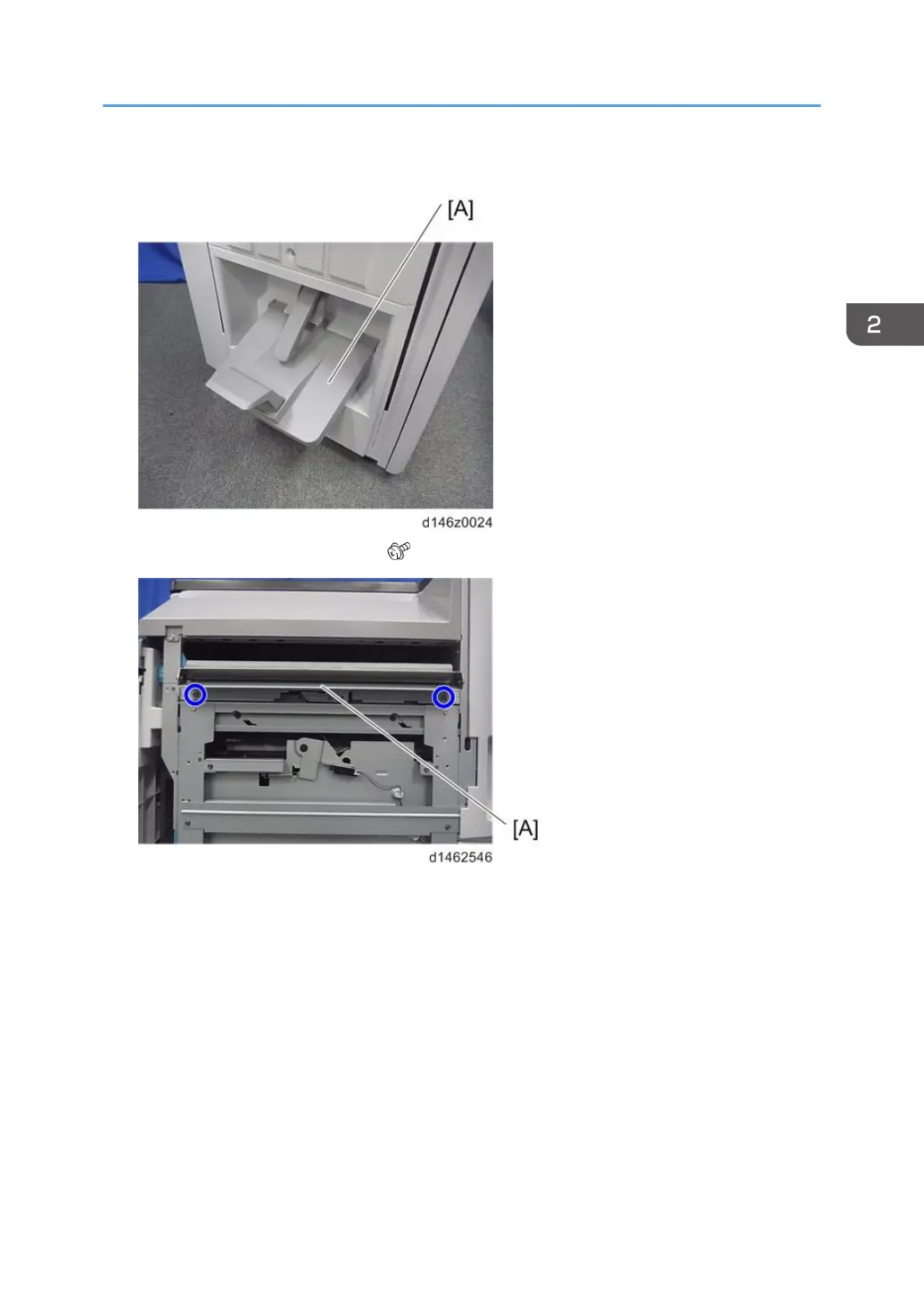

8. Attach the booklet tray [A] (Booklet Finisher SR3240 only).

9. Attach the relay guide plate [A] ( ×2: 3x6).

Booklet Finisher SR3240 (D3BB)/Finisher SR3230 (D3BA)

239
