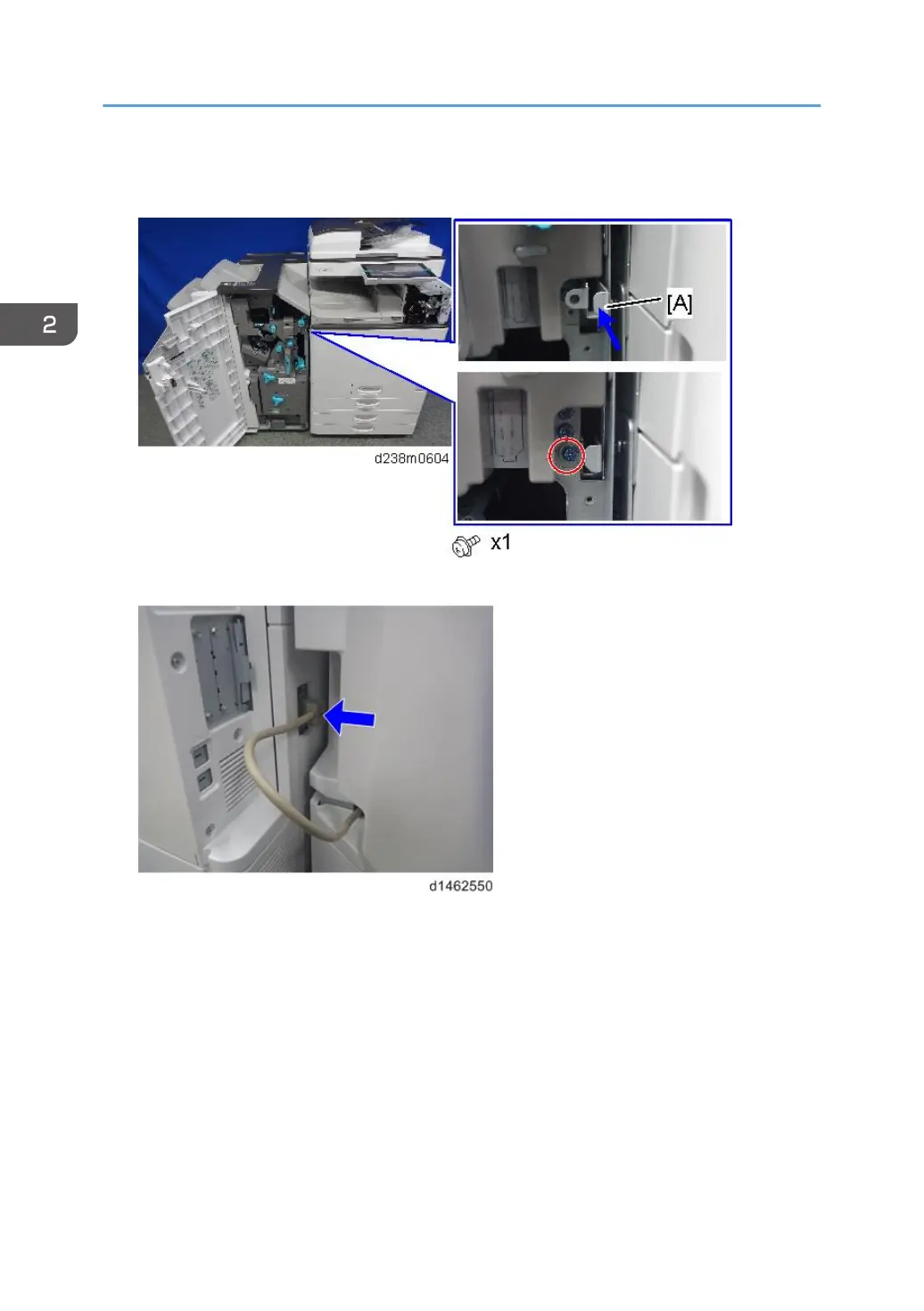

14. Connect the finisher to the main unit, and then push in the connection lever [A] to fasten it

to the main unit.

15. Connect the interface cable to the machine.
