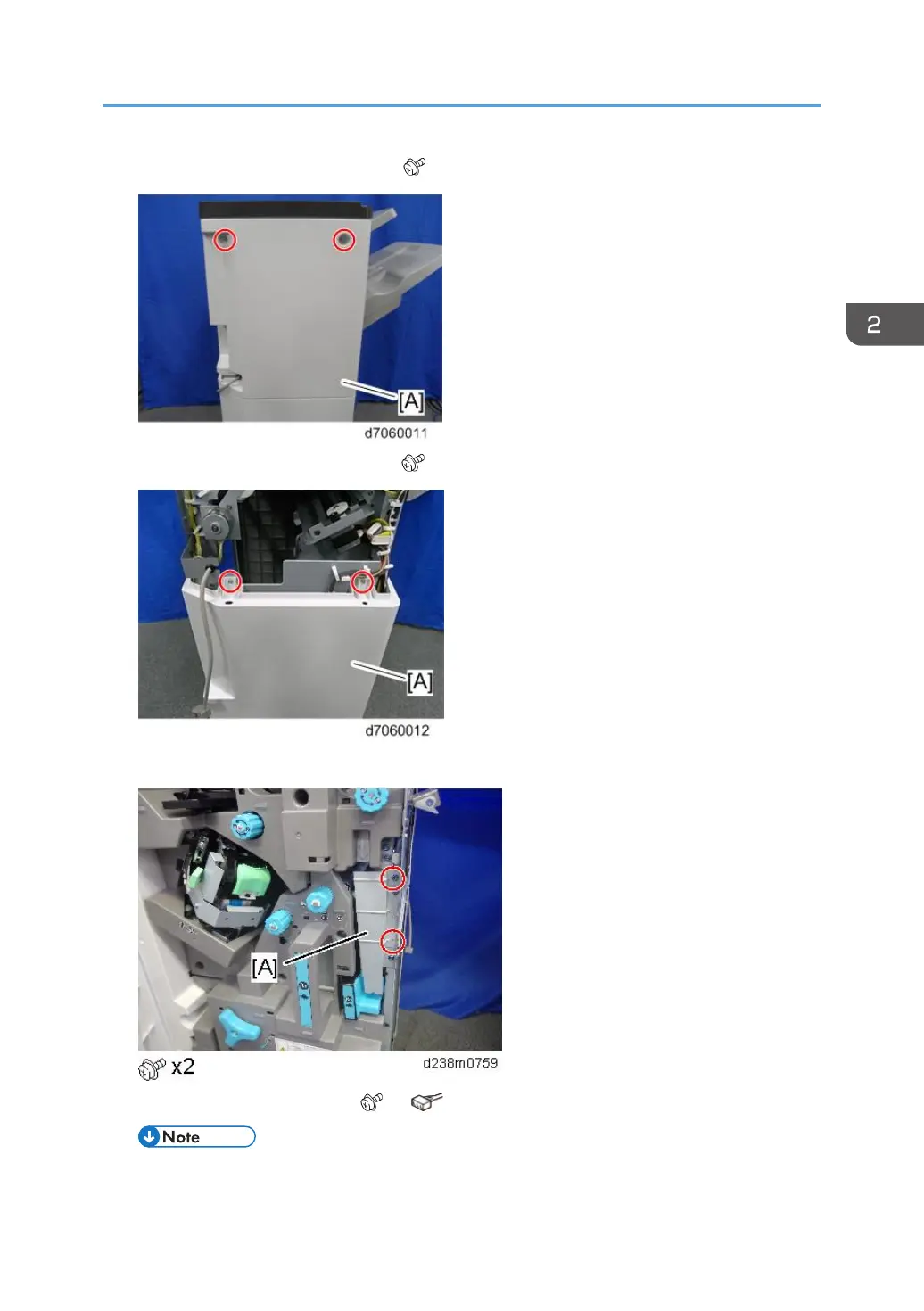

1. Remove the rear upper cover [A] ( ×2)
2. Remove the rear lower cover [A] ( ×2)
3. For Booklet finisher SR3240, remove the cover [A] of the booklet finisher unit.
4. Remove the inner cover [A] ( ×3, ×1)
• There is a connector on the back of the inner cover.
Punch Unit PU3060 (D706)
