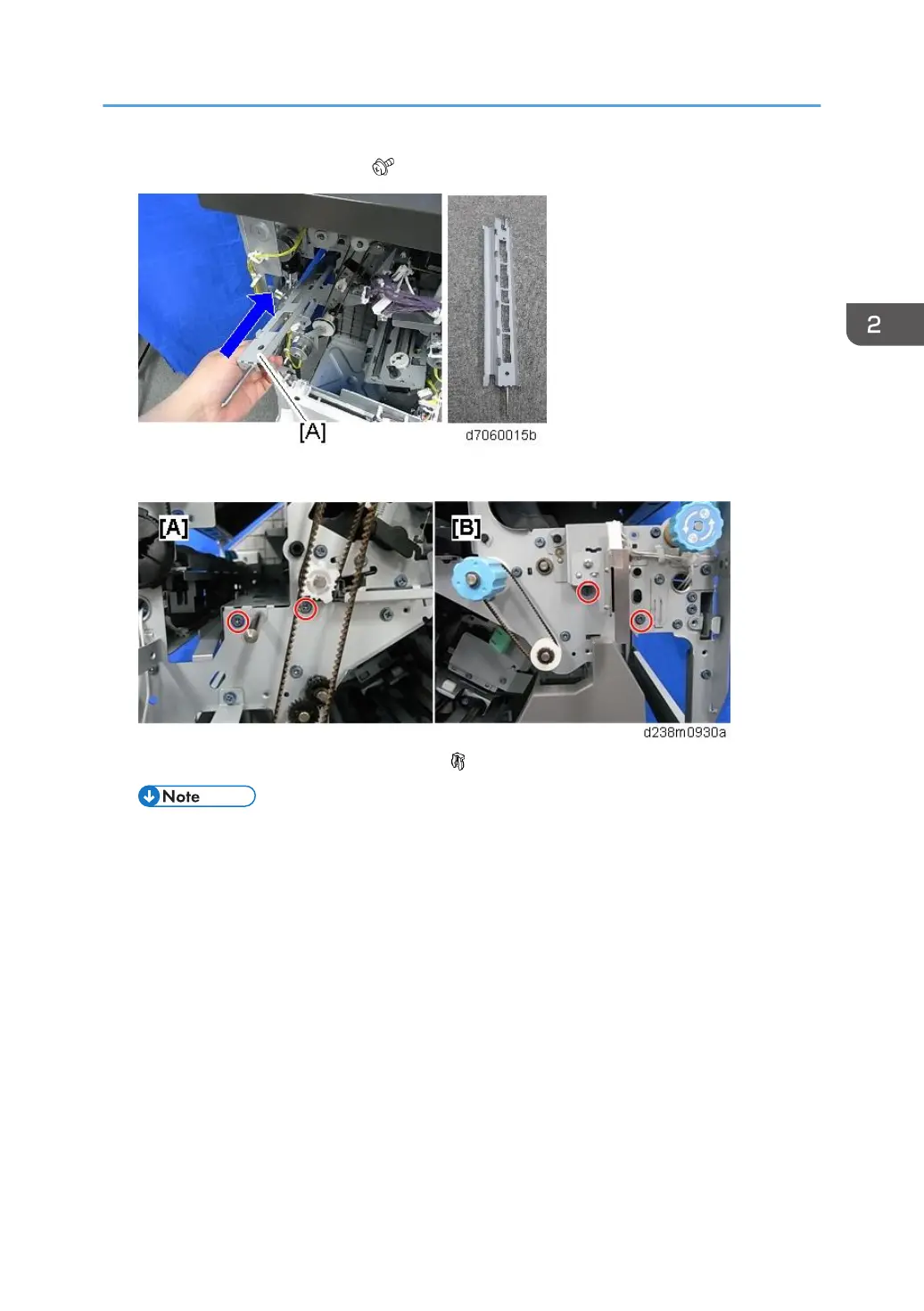

6. Attach the punch unit stay [A] ( ×4).
[A]: Rear, [B]: Front
7. Attach the punch waste paper guide [A] ( ×1).
• After inserting the front tab of the punch waste paper guide into the frame [B] of the finisher,
insert the rear tab into the frame [C].
Punch Unit PU3060 (D706)
249
