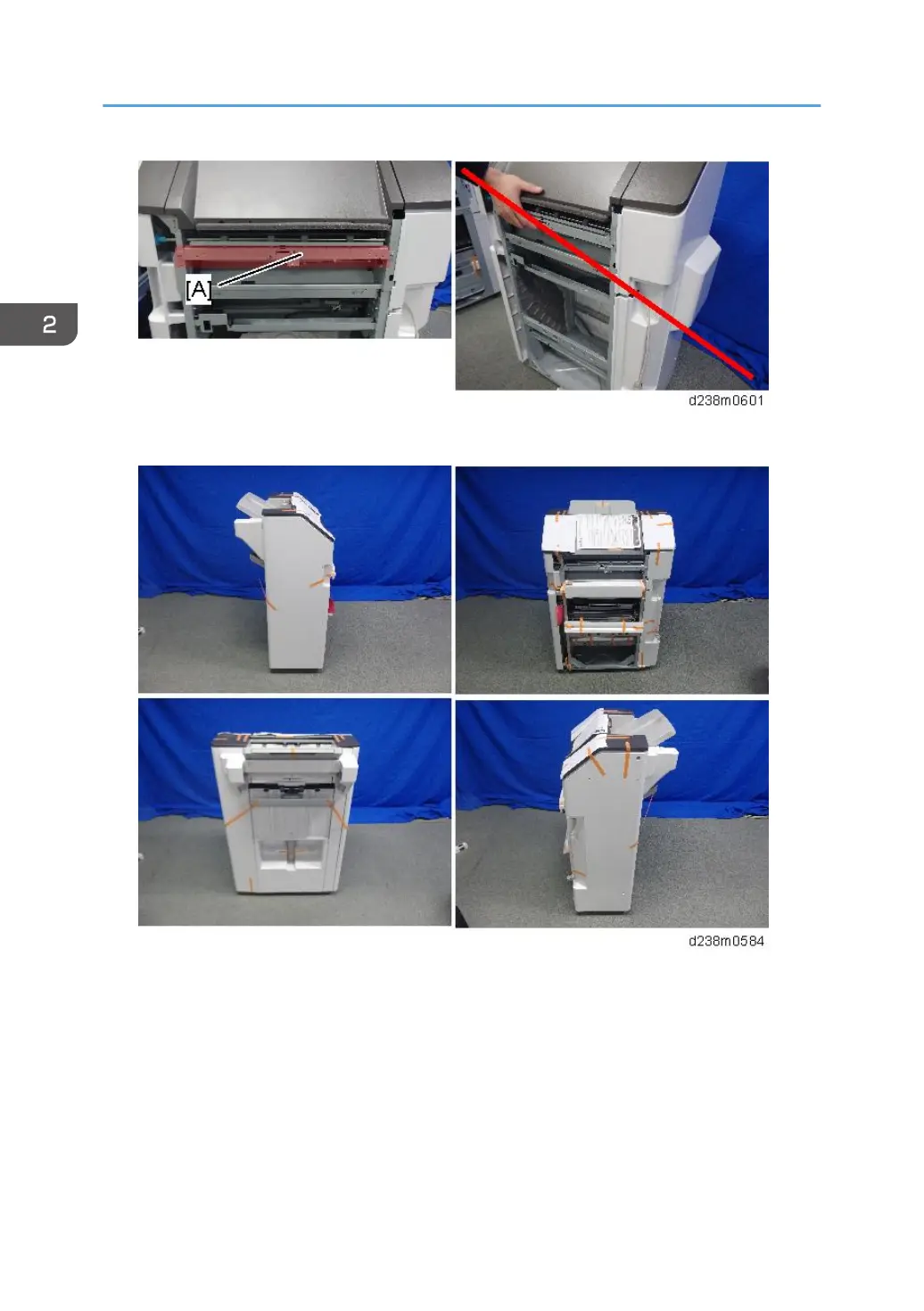

1. Remove the external orange tape and shipping retainers.

2. Open the front cover, and then remove the filament tape and packing materials.

2. Installation

262
