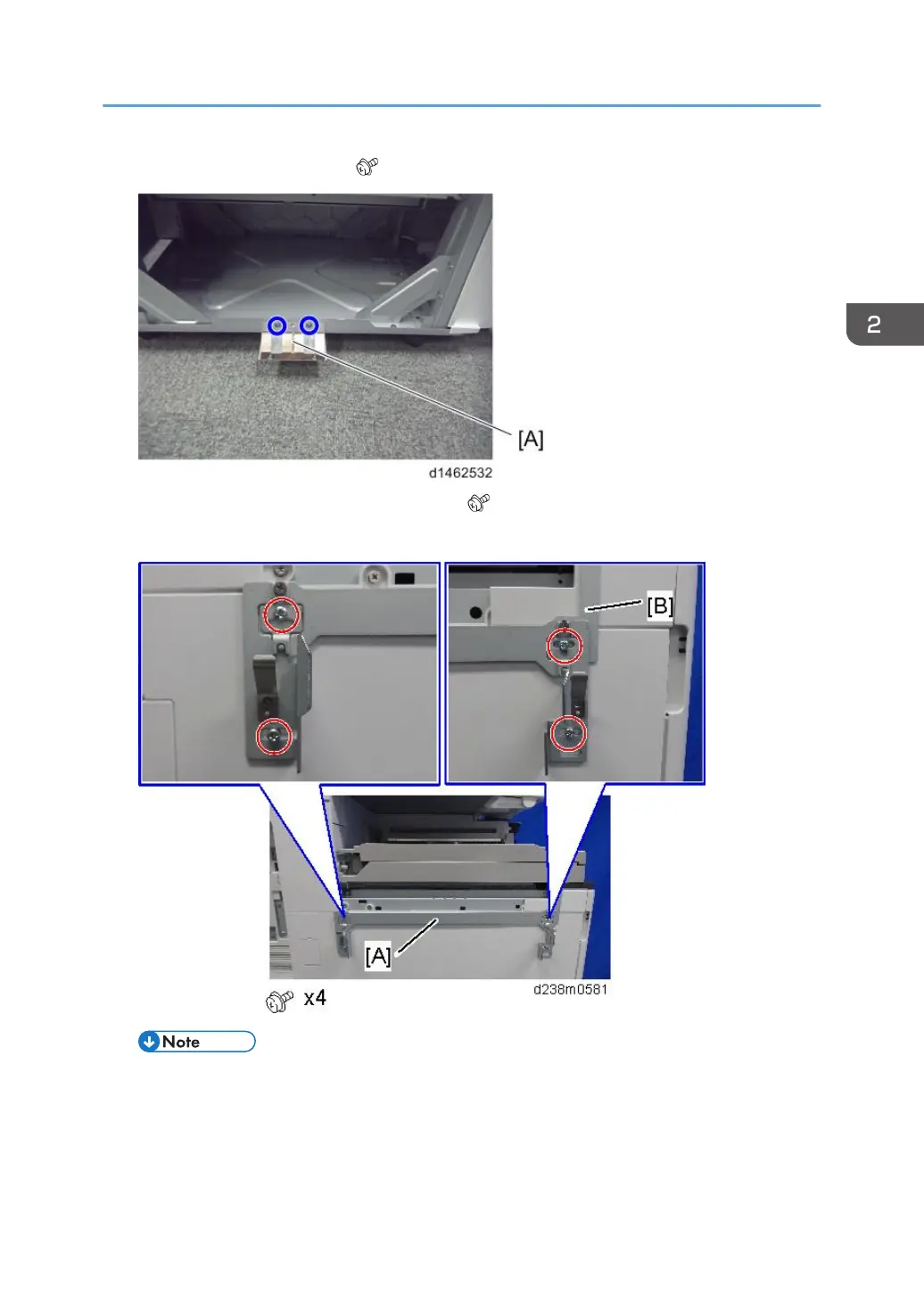

10. Attach the ground plate [A] ( ×2).
11. Attach the joint bracket [A] to the machine ( ×4 : 4x12).
Tighten the joint bracket [A] and bracket [B] of the bridge unit together.
• Attach the screw so that the screw head is at the center of the mark.
