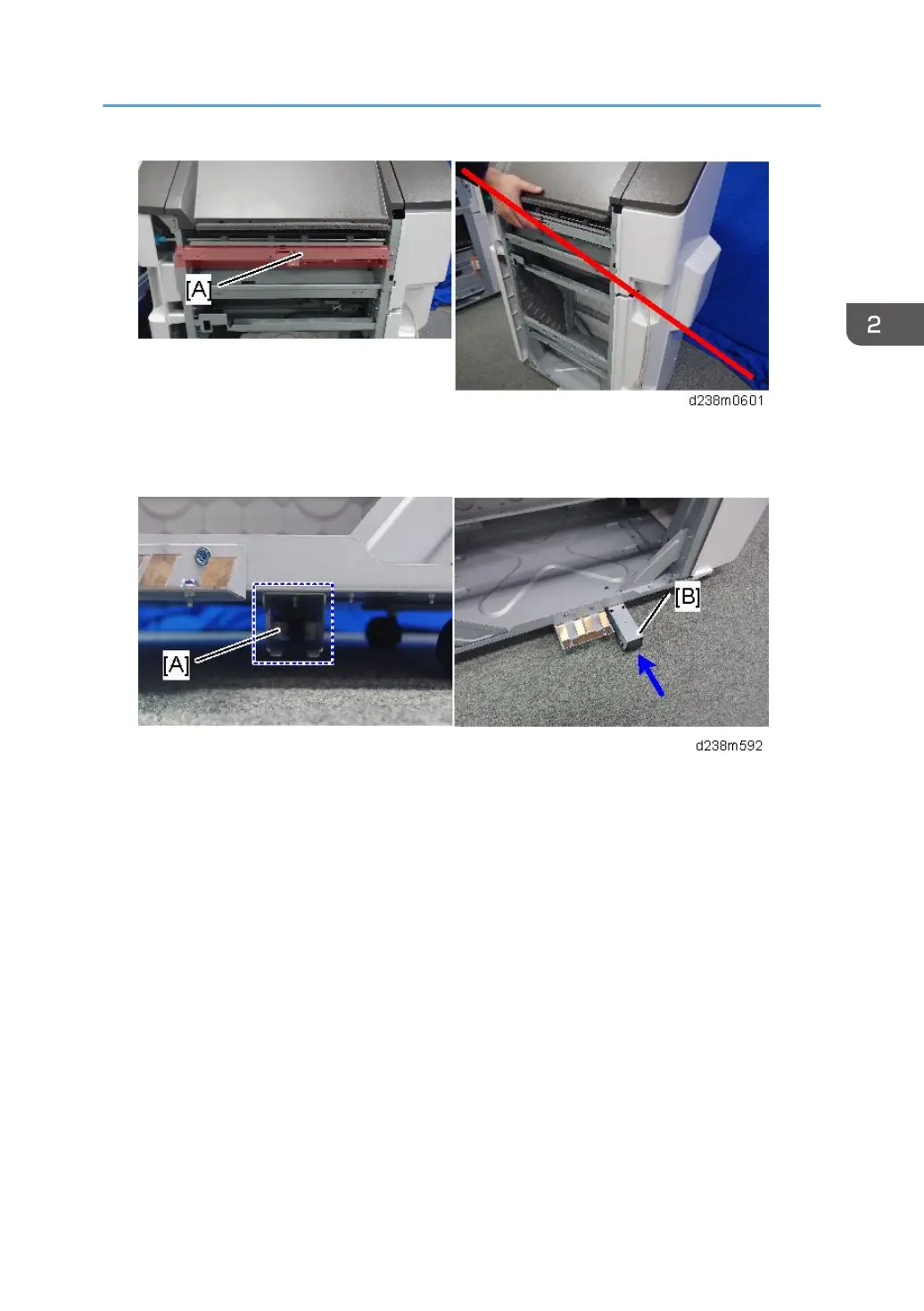

1. After unpacking, immediately attach the stabilizer [B] to prevent toppling.

Push it in thoroughly along the guide [A] until it clicks.

Finisher SR3210 (D3B8)

271
