Ricoh MP C3004 - Page 281

To Next Page

To Previous Page

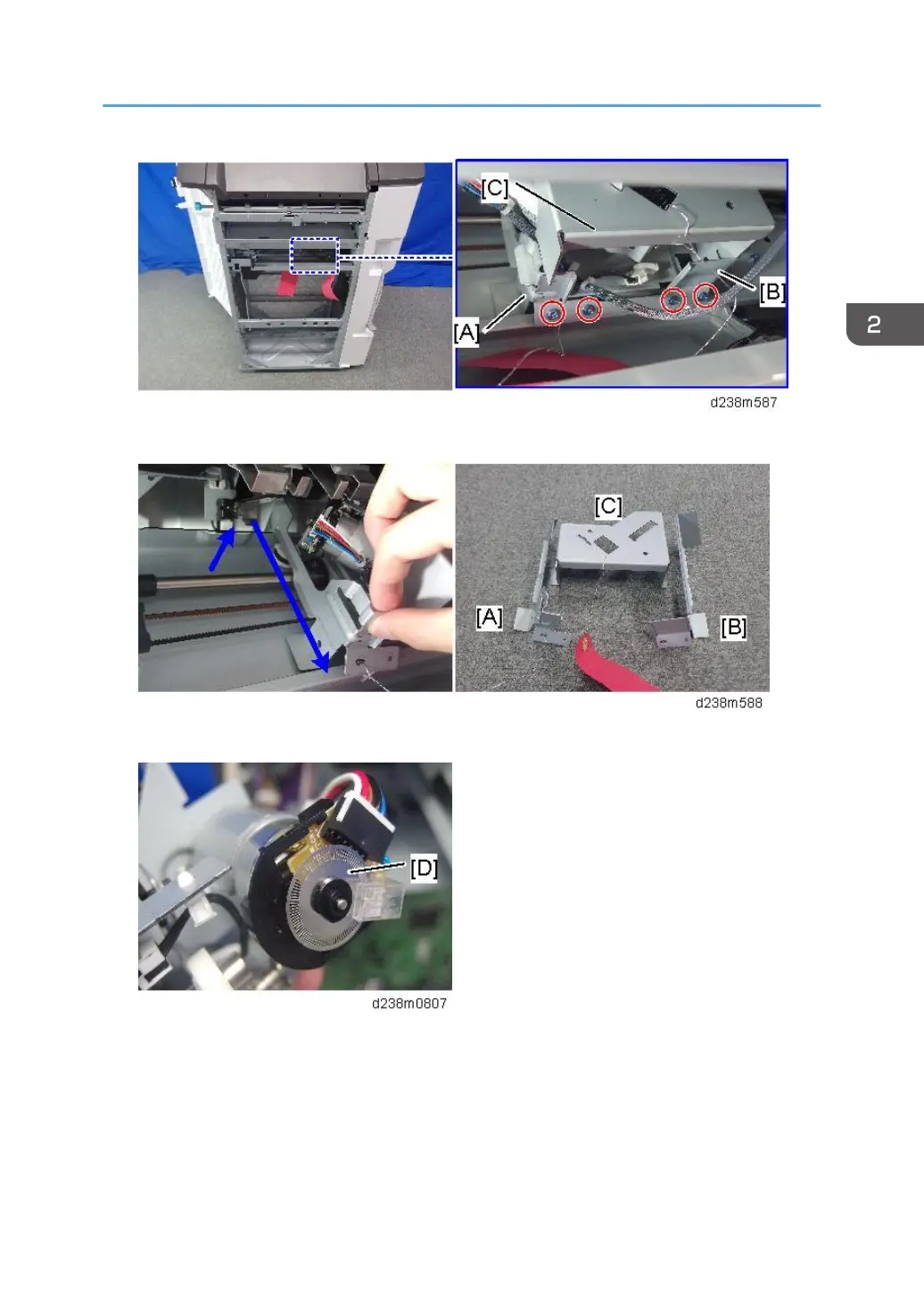

The fixing brackets are hooked to the metal plate, so slightly lift it and then remove it.

Be careful not to touch the encoder [D] at the back of the motor.

Be careful so that the fixing brackets do not come into contact with the feedout pawl HP sensor.

Finisher SR3210 (D3B8)

273
