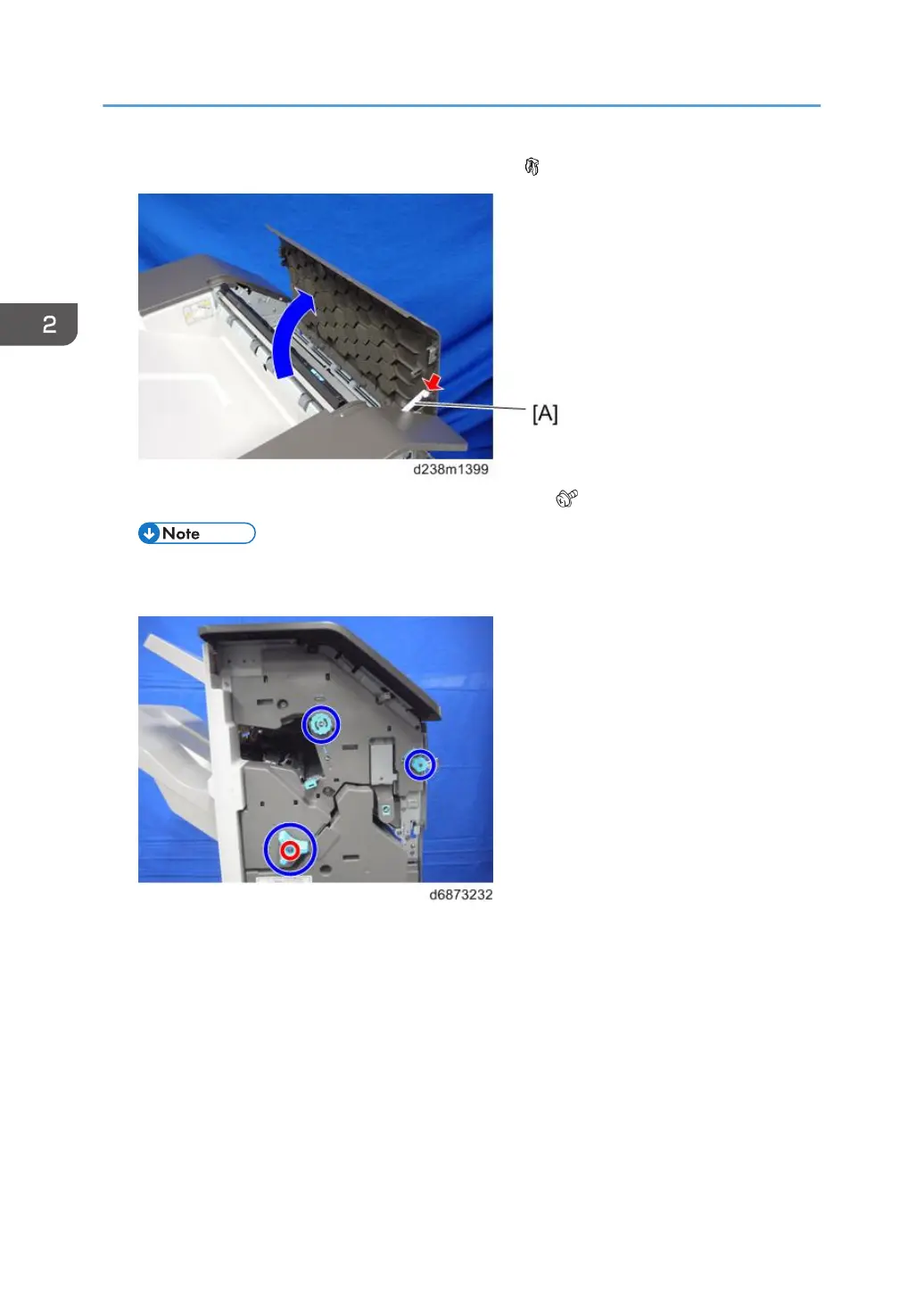

4. Open the top cover, and then remove the arm [A] ( ×1).

5. Open the finisher front cover, remove the three knobs ( x1).

• Knobs with a lock mechanism are removed using a knob screwdriver or similar while

releasing the lock.

2. Installation

284
