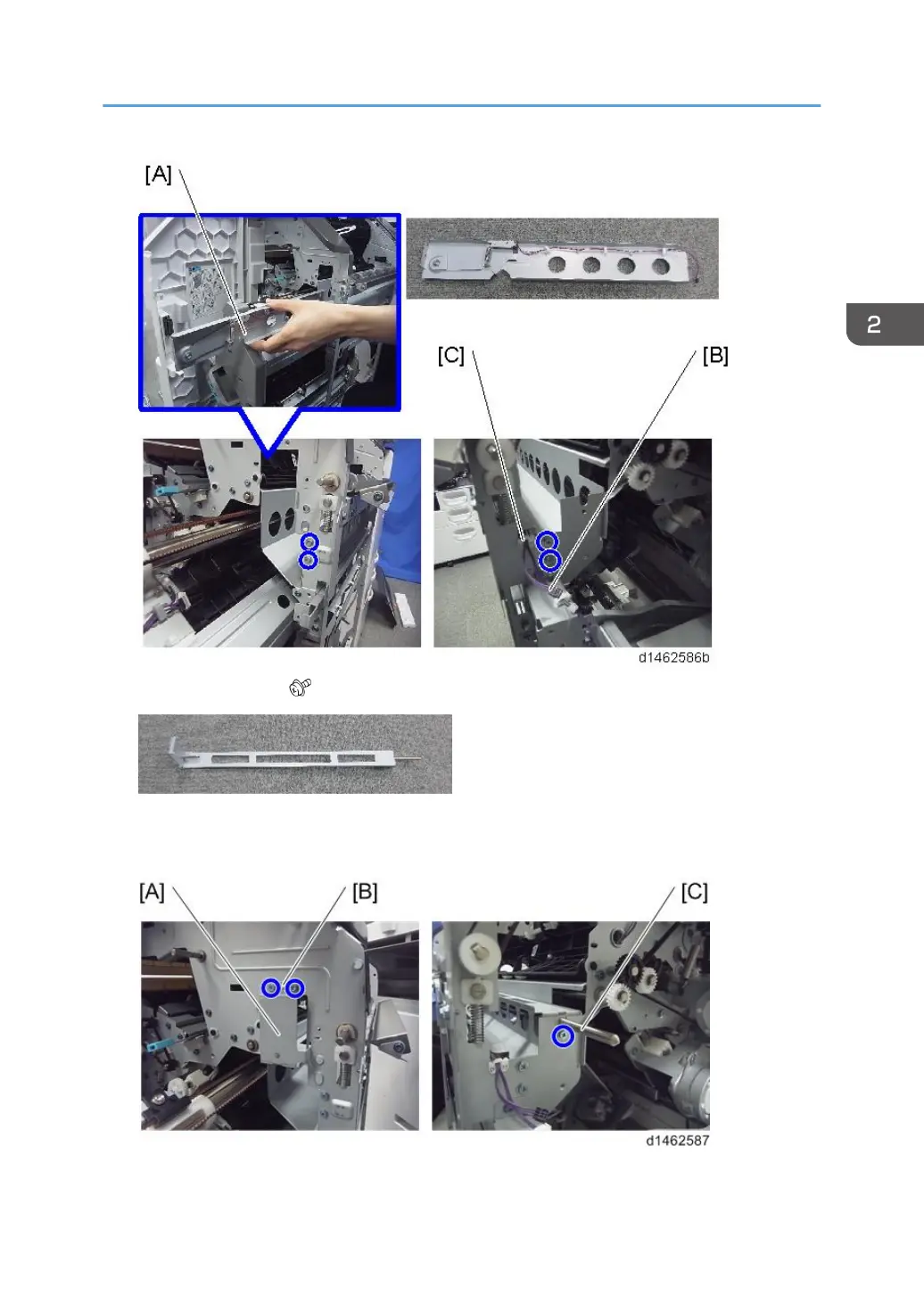

11. Attach the stay [A] ( ×3).

Front [B]: Insert the holes in the stay over the embossed parts on the finisher.

Rear [C]: Place the axis of the stay through the notch in the finisher.

Punch Unit PU3050

287
